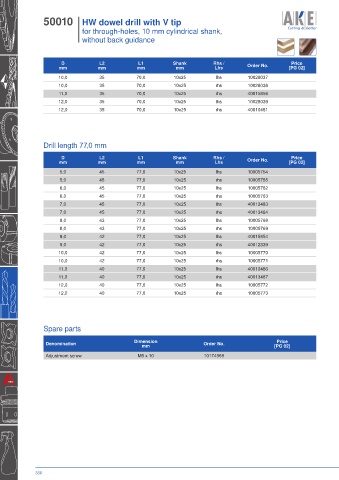

50010 I HW dowel drill with V tip
I for through-holes, 10 mm cylindrical shank,
I without back guidance

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
10,0 35 70,0 10x25 lhs 10028037
10,0 35 70,0 10x25 rhs 10028036
11,0 35 70,0 10x25 rhs 40015856
12,0 35 70,0 10x25 lhs 10028039
12,0 35 70,0 10x25 rhs 40010461

Drill length 77,0 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
5,0 45 77,0 10x25 lhs 10005754
5,0 45 77,0 10x25 rhs 10005755
6,0 45 77,0 10x25 lhs 10005762
6,0 45 77,0 10x25 rhs 10005763
7,0 45 77,0 10x25 lhs 40013483
7,0 45 77,0 10x25 rhs 40013484
8,0 43 77,0 10x25 lhs 10005768
8,0 43 77,0 10x25 rhs 10005769
9,0 42 77,0 10x25 lhs 40015854
9,0 42 77,0 10x25 rhs 40012339
10,0 42 77,0 10x25 lhs 10005770 I Solid carbide step drill
10,0 42 77,0 10x25 rhs 10005771
11,0 40 77,0 10x25 lhs 40013486
11,0 40 77,0 10x25 rhs 40013487
12,0 40 77,0 10x25 lhs 10005772
12,0 40 77,0 10x25 rhs 10005773

Spare parts

Price
Denomination Dimension Order No. [PG 02]
mm
Adjustment screw M5 x 10 10174969

330
