P. 343

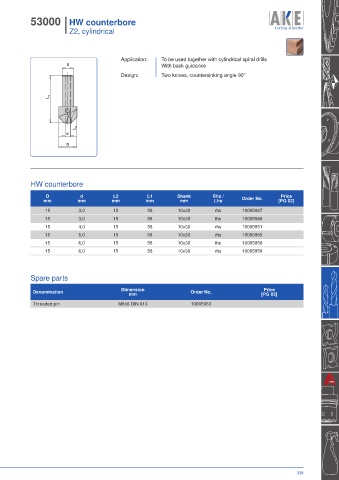

53000 I HW counterbore
I Z2, cylindrical
Application: To be used together with cylindrical spiral drills
S With back guidance
Design: Two knives, countersinking angle 90°
L 1
L 2
d
D
HW counterbore
D d L2 L1 Shank Rhs / Price
mm mm mm mm mm Lhs Order No. [PG 02]
15 3,0 15 58 10x30 rhs 10005947
15 3,0 15 58 10x30 lhs 10005946
15 4,0 15 58 10x30 rhs 10005951
15 5,0 15 58 10x30 rhs 10005955
15 6,0 15 58 10x30 lhs 10005958
15 6,0 15 58 10x30 rhs 10005959
Spare parts
Price
Denomination Dimension Order No. [PG 02]
mm
Threaded pin M6x6 DIN 913 10005963
339
