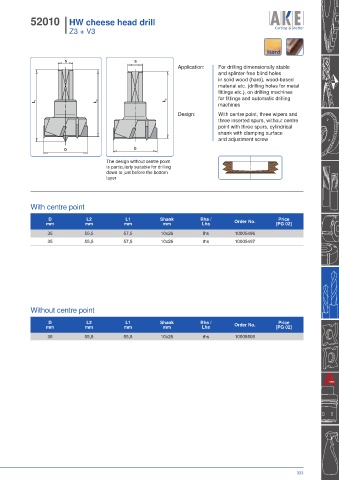

52010 I HW cheese head drill
I Z3 + V3

S S
Application: For drilling dimensionally stable
and splinter-free blind holes
in solid wood (hard), wood-based
material etc. (drilling holes for metal
fittings etc.), on drilling machines
for fittings and automatic drilling
L 1 L 2 L 2
machines
Design: With centre point, three wipers and
three inserted spurs, without centre
point with three spurs, cylindrical
shank with clamping surface
and adjustment screw
D D

The design without centre point
is particularly suitable for drilling
down to just before the bottom
layer

With centre point

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
35 55,5 57,5 10x26 lhs 10005496
35 55,5 57,5 10x26 rhs 10005497

Without centre point

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
35 55,5 55,5 10x26 rhs 10005505
