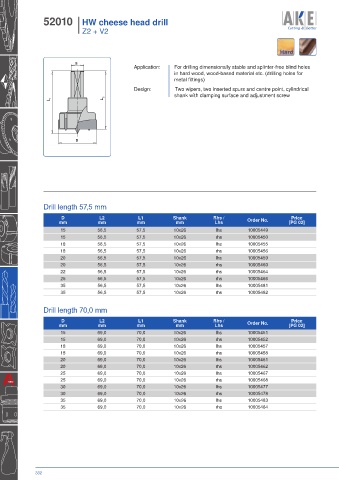

52010 I HW cheese head drill
I Z2 + V2

S
Application: For drilling dimensionally stable and splinter-free blind holes
in hard wood, wood-based material etc. (drilling holes for
metal fittings)
Design: Two wipers, two inserted spurs and centre point, cylindrical
shank with clamping surface and adjustment screw
L 1 L 2

D

Drill length 57,5 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
15 56,5 57,5 10x26 lhs 10005449
15 56,5 57,5 10x26 rhs 10005450
18 56,5 57,5 10x26 lhs 10005455
18 56,5 57,5 10x26 rhs 10005456
20 56,5 57,5 10x26 lhs 10005459
20 56,5 57,5 10x26 rhs 10005460
22 56,5 57,5 10x26 rhs 10005464
25 56,5 57,5 10x26 rhs 10005466
35 56,5 57,5 10x26 lhs 10005481
35 56,5 57,5 10x26 rhs 10005482

Drill length 70,0 mm

D L2 L1 Shank Rhs / Price
mm mm mm mm Lhs Order No. [PG 02]
15 69,0 70,0 10x26 lhs 10005451
15 69,0 70,0 10x26 rhs 10005452
18 69,0 70,0 10x26 lhs 10005457
18 69,0 70,0 10x26 rhs 10005458
20 69,0 70,0 10x26 lhs 10005461
20 69,0 70,0 10x26 rhs 10005462
25 69,0 70,0 10x26 lhs 10005467
25 69,0 70,0 10x26 rhs 10005468
30 69,0 70,0 10x26 lhs 10005477
30 69,0 70,0 10x26 rhs 10005478
35 69,0 70,0 10x26 lhs 10005483
35 69,0 70,0 10x26 rhs 10005484
