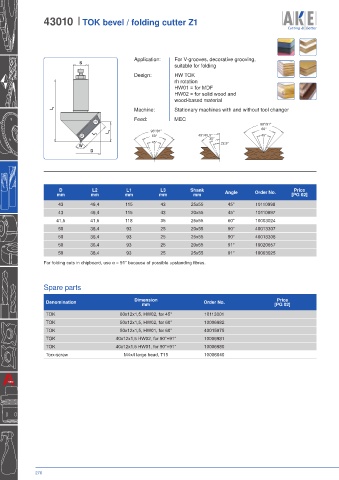

43010 I TOK bevel / folding cutter Z1

Application: For V-grooves, decorative grooving,
S
suitable for folding
Design: HW TOK
rh rotation
HW01 = for MDF
HW02 = for solid wood and
wood-based material
L 1 Machine: Stationary machines with and without tool changer
Feed: MEC
90°/91°
60°
L 3 90°/91°
L 2 60° 45°/45,5° 45°
30°
45° 22,5°
W
D

D L2 L1 L3 Shank Price
mm mm mm mm mm Angle Order No. [PG 02]
43 46,4 115 43 25x55 45° 10110998
43 46,4 115 43 20x55 45° 10110997
41,5 41,5 118 35 25x55 60° 10003024
50 36,4 93 25 20x55 90° 40013307
50 36,4 93 25 25x55 90° 40013308
50 36,4 93 25 20x55 91° 10020657
50 36,4 93 25 25x55 91° 10003025
For folding cuts in chipboard, use α = 91° because of possible upstanding fibres.

Spare parts

Price
Denomination Dimension Order No. [PG 02]
mm
TOK 60x12x1,5, HW02, for 45° 10113001
TOK 50x12x1,5, HW02, for 60° 10006982
TOK 50x12x1,5, HW01, for 60° 40015875
TOK 40x12x1,5 HW02, for 90°+91° 10006981
TOK 40x12x1,5 HW01, for 90°+91° 10006980
Torx-screw M4x4 large head, T15 10006040
