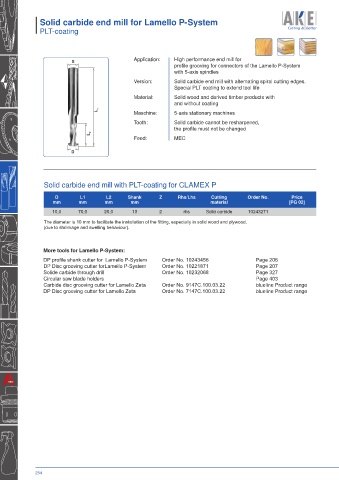

Page 258 - Catalogue_2025+

I Solid carbide end mill for Lamello P-System

I PLT-coating

Application: High performance end mill for
S
profile grooving for connectors of the Lamello P-System
with 5-axis spindles
Version: Solid carbide end mill with alternating spiral cutting edges.
Special PLT coating to extend tool life
Material: Solid wood and derived timber products with
and without coating
L 1 Maschine: 5-axis stationary machines
Tooth: Solid carbide cannot be resharpened,
the profile must not be changed
L 2
Feed: MEC

D

Solid carbide end mill with PLT-coating for CLAMEX P

D L1 L2 Shank Z Rhs/Lhs Cutting Order No. Price
mm mm mm mm material [PG 02]
10,0 70,0 20,0 10 2 rhs Solid carbide 10243271
The diameter is 10 mm to facilitate the installation of the fitting, especially in solid wood and plywood.
(due to shrinkage and swelling behaviour).

More tools for Lamello P-System:
DP profile shank cutter for Lamello P-System Order No. 10243456 Page 206
DP Disc grooving cutter forLamello P-System Order No. 10221871 Page 207
Solide carbide through drill Order No. 10232068 Page 327
Circular saw blade holders Page 403
Carbide disc grooving cutter for Lamello Zeta Order No. 9147C.100.03.22 blueline Product range
DP Disc grooving cutter for Lamello Zeta Order No. 7147C.100.03.22 blueline Product range

254
