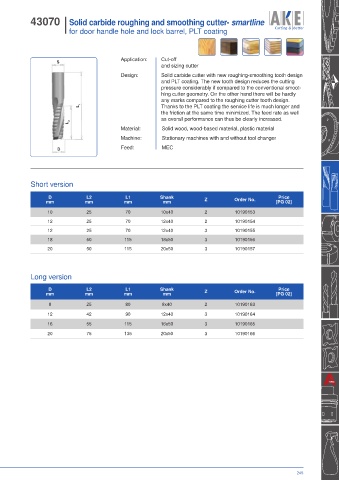

43070 I Solid carbide roughing and smoothing cutter- smartline
I for door handle hole and lock barrel, PLT coating

Application: Cut-off
S
and sizing cutter
Design: Solid carbide cutter with new roughing-smoothing tooth design
and PLT coating. The new tooth design reduces the cutting
pressure considerably if compared to the conventional smoot-
hing cutter geometry. On the other hand there will be hardly
any marks compared to the roughing cutter tooth design.
L 1 Thanks to the PLT coating the service life is much longer and
the friction at the same time minimized. The feed rate as well
as overall performance can thus be clearly increased.
L 2
Material: Solid wood, wood-based material, plastic material

Machine: Stationary machines with and without tool changer
D Feed: MEC

Short version

D L2 L1 Shank Price
mm mm mm mm Z Order No. [PG 02]
10 25 70 10x40 2 10190153
12 25 70 12x40 2 10190154
12 25 70 12x40 3 10190155
18 50 115 18x50 3 10190156
20 50 115 20x50 3 10190157

Long version

D L2 L1 Shank Price
mm mm mm mm Z Order No. [PG 02]
8 25 80 8x40 2 10190163
12 42 90 12x40 3 10190164
16 55 115 16x50 3 10190165
20 75 135 20x50 3 10190166

245
