P. 250

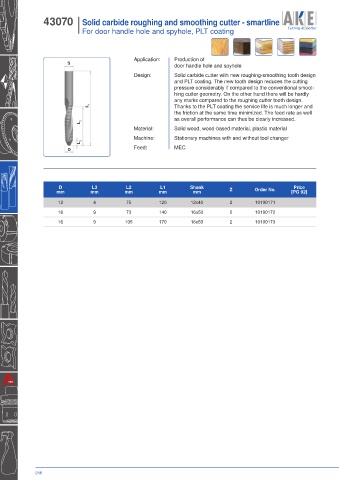

43070 I Solid carbide roughing and smoothing cutter - smartline
I For door handle hole and spyhole, PLT coating
Application: Production of
S
door handle hole and spyhole
Design: Solid carbide cutter with new roughing-smoothing tooth design
and PLT coating. The new tooth design reduces the cutting
pressure considerably if compared to the conventional smoot-
hing cutter geometry. On the other hand there will be hardly
any marks compared to the roughing cutter tooth design.
L 1 Thanks to the PLT coating the service life is much longer and
the friction at the same time minimized. The feed rate as well
as overall performance can thus be clearly increased.
L 2
Material: Solid wood, wood-based material, plastic material
Machine: Stationary machines with and without tool changer
L 3
D Feed: MEC
D L3 L2 L1 Shank Price
mm mm mm mm mm Z Order No. [PG 02]
12 4 75 120 12x40 2 10190171
16 9 73 140 16x50 2 10190172
16 9 105 170 16x50 2 10190173
