P. 247

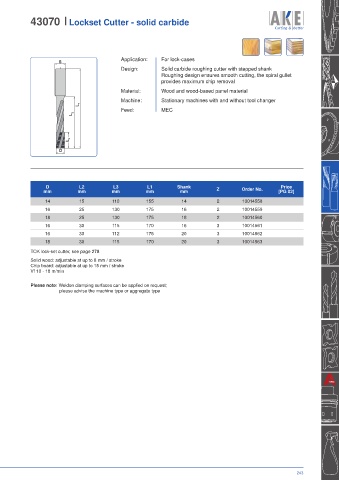

43070 I Lockset Cutter - solid carbide
Application: For lock-cases
S
Design: Solid carbide roughing cutter with stepped shank
Roughing design ensures smooth cutting, the spiral gullet
provides maximum chip removal
Material: Wood and wood-based panel material
Machine: Stationary machines with and without tool changer
L 1
Feed: MEC
L 3
L 2
D
D L2 L3 L1 Shank Price
mm mm mm mm mm Z Order No. [PG 02]
14 15 110 155 14 2 10014558
16 25 130 175 16 2 10014559
18 25 130 175 18 2 10014560
16 30 115 170 16 3 10014561
16 30 112 175 20 3 10014562
18 30 115 170 20 3 10014563
TOK lock-set cutter, see page 278
Solid wood: adjustable at up to 8 mm / stroke
Chip board: adjustable at up to 15 mm / stroke
Vf 10 - 18 m/min
Please note: Weldon clamping surfaces can be applied on request;
please advise the machine type or aggregate type
243
