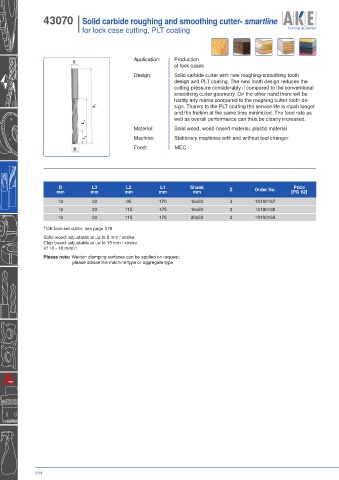

43070 I Solid carbide roughing and smoothing cutter- smartline
I for lock case cutting, PLT coating

Application: Production
S
of lock cases
Design: Solid carbide cutter with new roughing-smoothing tooth
design and PLT coating. The new tooth design reduces the
cutting pressure considerably if compared to the conventional
smoothing cutter geometry. On the other hand there will be
hardly any marks compared to the roughing cutter tooth de-
L 1 sign. Thanks to the PLT coating the service life is much longer
and the friction at the same time minimized. The feed rate as
well as overall performance can thus be clearly increased.
L 2
Material: Solid wood, wood-based material, plastic material

L 3 Machine: Stationary machines with and without tool changer
D Feed: MEC

D L3 L2 L1 Shank Price
mm mm mm mm mm Z Order No. [PG 02]

16 30 95 170 16x50 3 10190167
16 30 115 175 16x50 3 10190168
16 30 115 175 20x50 3 10190169
TOK lock-set cutter, see page 278
Solid wood: adjustable at up to 8 mm / stroke
Chip board: adjustable at up to 15 mm / stroke
Vf 10 - 18 m/min
Please note: Weldon clamping surfaces can be applied on request;
please advise the machine type or aggregate type
