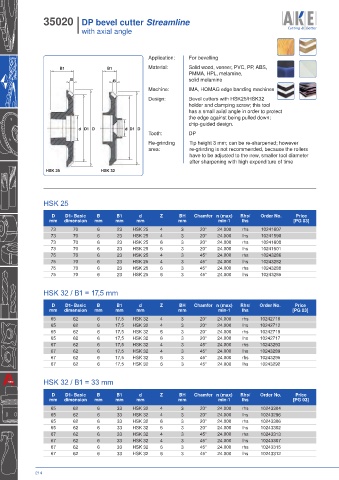

35020 I DP bevel cutter Streamline
I with axial angle

Application: For bevelling
B1 B1 Material: Solid wood, veneer, PVC, PP, ABS,
PMMA, HPL, melamine,
B B solid melamine
Machine: IMA, HOMAG edge banding machines
Design: Bevel cutters with HSK25/HSK32
holder and clamping screw; this tool
has a small axial angle in order to protect
the edge against being pulled down;
chip-guided design.
d D1 D d D1 D
Tooth: DP
Re-grinding Tip height 3 mm; can be re-sharpened; however
area: re-grinding is not recommended, because the rollers
have to be adjusted to the new, smaller tool diameter
after sharpening with high expenditure of time
HSK 25 HSK 32

HSK 25

D D1- Basic B B1 d Z BH Chamfer n (max) Rhs/ Order No. Price
mm dimension mm mm mm mm min-1 lhs [PG 03]
73 70 6 23 HSK 25 4 3 20° 24.000 rhs 10241607
73 70 6 23 HSK 25 4 3 20° 24.000 lhs 10241590
73 70 6 23 HSK 25 6 3 20° 24.000 rhs 10241608
73 70 6 23 HSK 25 6 3 20° 24.000 lhs 10241601
75 70 6 23 HSK 25 4 3 45° 24.000 rhs 10243286
75 70 6 23 HSK 25 4 3 45° 24.000 lhs 10243282
75 70 6 23 HSK 25 6 3 45° 24.000 rhs 10243288
75 70 6 23 HSK 25 6 3 45° 24.000 lhs 10243285

HSK 32 / B1 = 17,5 mm

D D1- Basic B B1 d Z BH Chamfer n (max) Rhs/ Order No. Price
mm dimension mm mm mm mm min-1 lhs [PG 03]
65 62 6 17,5 HSK 32 4 3 20° 24.000 rhs 10242718
65 62 6 17,5 HSK 32 4 3 20° 24.000 lhs 10242712
65 62 6 17,5 HSK 32 6 3 20° 24.000 rhs 10242719
65 62 6 17,5 HSK 32 6 3 20° 24.000 lhs 10242717
67 62 6 17,5 HSK 32 4 3 45° 24.000 rhs 10243293
67 62 6 17,5 HSK 32 4 3 45° 24.000 lhs 10243289
67 62 6 17,5 HSK 32 6 3 45° 24.000 rhs 10243295
67 62 6 17,5 HSK 32 6 3 45° 24.000 lhs 10243292

HSK 32 / B1 = 33 mm

D D1- Basic B B1 d Z BH Chamfer n (max) Rhs/ Order No. Price
mm dimension mm mm mm mm min-1 lhs [PG 03]
65 62 6 33 HSK 32 4 3 20° 24.000 rhs 10243304
65 62 6 33 HSK 32 4 3 20° 24.000 lhs 10243296
65 62 6 33 HSK 32 6 3 20° 24.000 rhs 10243306
65 62 6 33 HSK 32 6 3 20° 24.000 lhs 10243302
67 62 6 33 HSK 32 4 3 45° 24.000 rhs 10243313
67 62 6 33 HSK 32 4 3 45° 24.000 lhs 10243307
67 62 6 33 HSK 32 6 3 45° 24.000 rhs 10243315
67 62 6 33 HSK 32 6 3 45° 24.000 lhs 10243312
