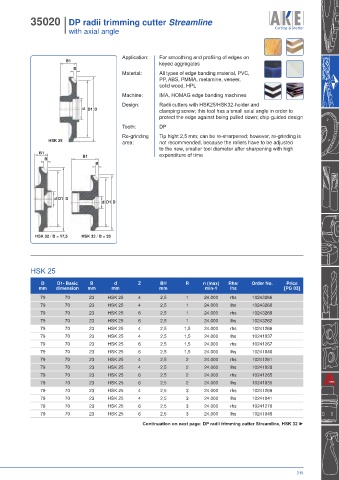

35020 I DP radii trimming cutter Streamline
I with axial angle

Application: For smoothing and profiling of edges on
B1 keyed aggregates
B
Material: All types of edge banding material, PVC,
PP, ABS, PMMA, melamine, veneer,
solid wood, HPL
Machine: IMA, HOMAG edge banding machines
Design: Radii cutters with HSK25/HSK32-holder and
d D1 D clamping screw; this tool has a small axial angle in order to
protect the edge against being pulled down; chip-guided design
Tooth: DP
Re-grinding Tip hight 2,5 mm; can be re-sharpened; however, re-grinding is
HSK 25 area: not recommended, because the rollers have to be adjusted
to the new, smaller tool diameter after sharpening with high
B1 expenditure of time
B B1
B

d D1 D
d D1 D

HSK 32 / B = 17,5 HSK 32 / B = 33

HSK 25

D D1- Basic B d Z BH R n (max) Rhs/ Order No. Price
mm dimension mm mm mm min-1 lhs [PG 03]
79 70 23 HSK 25 4 2,5 1 24.000 rhs 10243266
79 70 23 HSK 25 4 2,5 1 24.000 lhs 10243260
79 70 23 HSK 25 6 2,5 1 24.000 rhs 10243269
79 70 23 HSK 25 6 2,5 1 24.000 lhs 10243262
79 70 23 HSK 25 4 2,5 1,5 24.000 rhs 10241266
79 70 23 HSK 25 4 2,5 1,5 24.000 lhs 10241037
79 70 23 HSK 25 6 2,5 1,5 24.000 rhs 10241267
79 70 23 HSK 25 6 2,5 1,5 24.000 lhs 10241040
79 70 23 HSK 25 4 2,5 2 24.000 rhs 10241261
79 70 23 HSK 25 4 2,5 2 24.000 lhs 10241028
79 70 23 HSK 25 6 2,5 2 24.000 rhs 10241265
79 70 23 HSK 25 6 2,5 2 24.000 lhs 10241035
79 70 23 HSK 25 4 2,5 3 24.000 rhs 10241269
79 70 23 HSK 25 4 2,5 3 24.000 lhs 10241041
79 70 23 HSK 25 6 2,5 3 24.000 rhs 10241270
79 70 23 HSK 25 6 2,5 3 24.000 lhs 10241049
Continuation on next page: DP radii trimming cutter Streamline, HSK 32 ►
