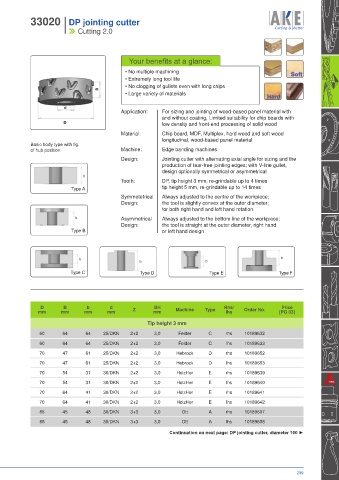

33020 I DP jointing cutter
I Cutting 2.0

Your benefits at a glance:

• No multiple machining
• Extremely long tool life
• No clogging of gullets even with long chips
B
• Large variety of materials

d
Application: For sizing and jointing of wood-based panel material with
and without coating, Limited suitability for chip boards with
D low density and front-end processing of solid wood
Material: Chip board, MDF, Multiplex, hard wood and soft wood
longitudinal, wood-based panel material
Basic body type with fig.
of hub position Machine: Edge banding machines
Design: Jointing cutter with alternating axial angle for sizing and the
production of tear-free jointing edges; with V-line gullet,
design optionally symmetrical or asymmetrical
b
Tooth: DP, tip height 3 mm, re-grindable up to 4 times
Type A tip height 5 mm, re-grindable up to 14 times
Symmetetrical Always adjusted to the centre of the workpiece;
Design: the tool is slightly convex at the outer diameter;
for both right hand and left hand rotation
b Asymmetrical Always adjusted to the bottom line of the workpiece;
Design: the tool is straight at the outer diameter, right hand
Type B or left hand design

b b
b b
Type C Type D Type E Type F

D B b d BH Rhs/ Price
mm mm mm mm Z mm Machine Type lhs Order No. [PG 03]
Tip height 3 mm
60 64 64 25/DKN 2+2 3,0 Felder C rhs 10189632

60 64 64 25/DKN 2+2 3,0 Felder C lhs 10189633
70 47 61 25/DKN 2+2 3,0 Hebrock D rhs 10189652
70 47 61 25/DKN 2+2 3,0 Hebrock D lhs 10189653
70 54 31 30/DKN 2+2 3,0 HolzHer E rhs 10189639
70 54 31 30/DKN 2+2 3,0 HolzHer E lhs 10189640
70 64 41 30/DKN 2+2 3,0 HolzHer E rhs 10189641

70 64 41 30/DKN 2+2 3,0 HolzHer E lhs 10189642
85 45 48 30/DKN 3+3 3,0 Ott A rhs 10189607
85 45 48 30/DKN 3+3 3,0 Ott A lhs 10189608
Continuation on next page: DP jointing cutter, diameter 100 ►
