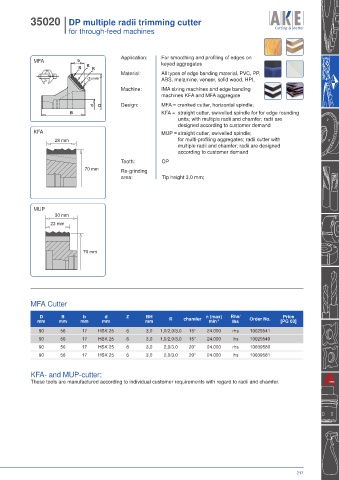

35020 I DP multiple radii trimming cutter
I for through-feed machines

Application: For smoothing and profiling of edges on
MFA b keyed aggregates
. R . R . R
Material: All types of edge banding material, PVC, PP,
. Fase
chamfer ABS, melamine, veneer, solid wood, HPL
Machine: IMA sizing machines and edge banding
machines KFA and MFA aggregate

d D Design: MFA = cranked cutter, horizontal spindle;
B KFA = straight cutter, swivelled spindle for for edge rounding
units; with multiple radii and chamfer; radii are
designed according to customer demand
KFA MUP = straight cutter, swivelled spindle;
28 mm for multi-profiling aggregates; radii cutter with
multiple radii and chamfer; radii are designed
according to customer demand

Tooth: DP
70 mm Re-grinding
area: Tip height 3,0 mm;

MUP
30 mm
23 mm

70 mm

MFA Cutter

D B b d Z BH n (max) Rhs/ Price
mm mm mm mm mm R chamfer min -1 lhs Order No. [PG 03]
90 56 17 HSK 25 6 3,0 1,0/2,0/3,0 15° 24.000 rhs 10029541
90 56 17 HSK 25 6 3,0 1,0/2,0/3,0 15° 24.000 lhs 10029540
90 56 17 HSK 25 6 3,0 2,0/3,0 20° 24.000 rhs 10039580
90 56 17 HSK 25 6 3,0 2,0/3,0 20° 24.000 lhs 10039581

KFA- and MUP-cutter:
These tools are manufactured according to individual customer requirements with regard to radii and chamfer.
