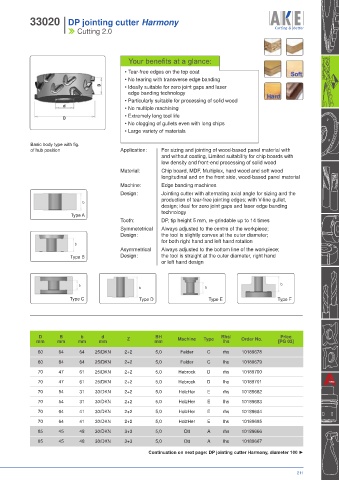

33020 I DP jointing cutter Harmony
I Cutting 2.0

Your benefits at a glance:

• Tear-free edges on the top coat
• No tearing with transverse edge banding
B • Ideally suitable for zero joint gaps and laser
edge banding technology
• Particularly suitable for processing of solid wood
d
• No multiple machining
• Extremely long tool life
D
• No clogging of gullets even with long chips
• Large variety of materials

Basic body type with fig.
of hub position Application: For sizing and jointing of wood-based panel material with
and without coating, Limited suitability for chip boards with
low density and front-end processing of solid wood
Material: Chip board, MDF, Multiplex, hard wood and soft wood
longitudinal and on the front side, wood-based panel material
Machine: Edge banding machines
Design: Jointing cutter with alternating axial angle for sizing and the
production of tear-free jointing edges; with V-line gullet,
b
design; ideal for zero joint gaps and laser edge banding
technology
Type A
Tooth: DP, tip height 5 mm, re-grindable up to 14 times
Symmetetrical Always adjusted to the centre of the workpiece;
Design: the tool is slightly convex at the outer diameter;
for both right hand and left hand rotation
b
Asymmetrical Always adjusted to the bottom line of the workpiece;
Type B Design: the tool is straight at the outer diameter, right hand
or left hand design

b b
b b
Type C Type D Type E Type F

D B b d BH Rhs/ Price
mm mm mm mm Z mm Machine Type lhs Order No. [PG 03]
60 64 64 25/DKN 2+2 5,0 Felder C rhs 10189678

60 64 64 25/DKN 2+2 5,0 Felder C lhs 10189679
70 47 61 25/DKN 2+2 5,0 Hebrock D rhs 10189700
70 47 61 25/DKN 2+2 5,0 Hebrock D lhs 10189701
70 54 31 30/DKN 2+2 5,0 HolzHer E rhs 10189682
70 54 31 30/DKN 2+2 5,0 HolzHer E lhs 10189683

70 64 41 30/DKN 2+2 5,0 HolzHer E rhs 10189684
70 64 41 30/DKN 2+2 5,0 HolzHer E lhs 10189685
85 45 48 30/DKN 3+3 5,0 Ott A rhs 10189666
85 45 48 30/DKN 3+3 5,0 Ott A lhs 10189667
Continuation on next page: DP jointing cutter Harmony, diameter 100 ►
