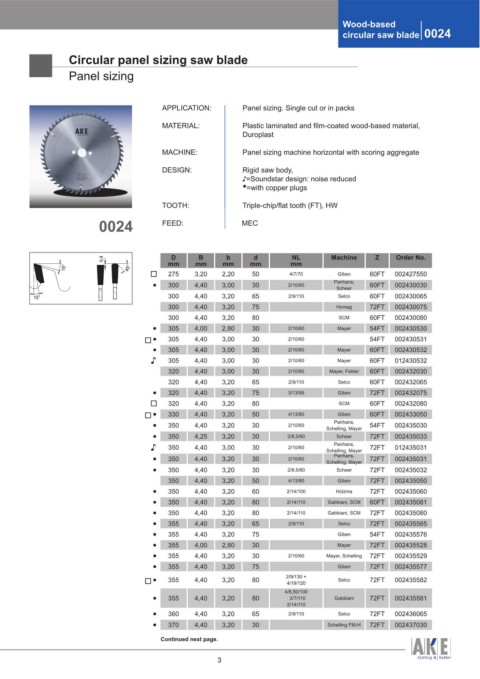

Page 3 - Furniture production_EN_2015

Wood-based
circular saw blade 0024

Circular panel sizing saw blade
Panel sizing

APPLICATION: Panel sizing. Single cut or in packs

MATERIAL: Plastic laminated and film-coated wood-based material,
Duroplast

MACHINE: Panel sizing machine horizontal with scoring aggregate

DESIGN: Rigid saw body,
♪=Soundstar design: noise reduced
•=with copper plugs

TOOTH: Triple-chip/flat tooth (FT), HW

0024 FEED: MEC

0,4 D B b d NL Machine Z Order No.
15° 45° mm mm mm mm mm
275 3,20 2,20 50 4/7/70 Giben 60FT 002427550
• 300 4,40 3,00 30 2/10/60 Panhans, 60FT 002430030
Scheer
15° 300 4,40 3,20 65 2/9/110 Selco 60FT 002430065
300 4,40 3,20 75 Homag 72FT 002430075
300 4,40 3,20 80 SCM 60FT 002430080
• 305 4,00 2,80 30 2/10/60 Mayer 54FT 002430530
• 305 4,40 3,00 30 2/10/60 54FT 002430531
• 305 4,40 3,00 30 2/10/60 Mayer 60FT 002430532
♪ 305 4,40 3,00 30 2/10/60 Mayer 60FT 012430532
320 4,40 3,00 30 2/10/60 Mayer, Felder 60FT 002432030
320 4,40 3,20 65 2/9/110 Selco 60FT 002432065
• 320 4,40 3,20 75 3/13/95 Giben 72FT 002432075
320 4,40 3,20 80 SCM 60FT 002432080
• 330 4,40 3,20 50 4/13/80 Giben 60FT 002433050
• 350 4,40 3,20 30 2/10/60 Schelling, Mayer 54FT 002435030
Panhans,
• 350 4,25 3,20 30 2/8,5/60 Scheer 72FT 002435033
♪ 350 4,40 3,00 30 2/10/60 Schelling, Mayer 72FT 012435031
Panhans,
• 350 4,40 3,20 30 2/10/60 Schelling, Mayer 72FT 002435031
Panhans,
• 350 4,40 3,20 30 2/8,5/60 Scheer 72FT 002435032
350 4,40 3,20 50 4/13/80 Giben 72FT 002435050
• 350 4,40 3,20 60 2/14/100 Holzma 72FT 002435060
• 350 4,40 3,20 80 2/14/110 Gabbiani, SCM 60FT 002435081
• 350 4,40 3,20 80 2/14/110 Gabbiani, SCM 72FT 002435080
• 355 4,40 3,20 65 2/9/110 Selco 72FT 002435565
• 355 4,40 3,20 75 Giben 54FT 002435576
• 355 4,00 2,80 30 Mayer 72FT 002435528
• 355 4,40 3,20 30 2/10/60 Mayer, Schelling 72FT 002435529
• 355 4,40 3,20 75 Giben 72FT 002435577
• 355 4,40 3,20 80 2/9/130 + Selco 72FT 002435582
4/19/120
• 355 4,40 3,20 80 4/8,50/100 Gabbiani 72FT 002435581
2/7/110
2/14/110
• 360 4,40 3,20 65 2/9/110 Selco 72FT 002436065
• 370 4,40 3,20 30 Schelling FM-H 72FT 002437030
Continued next page.
