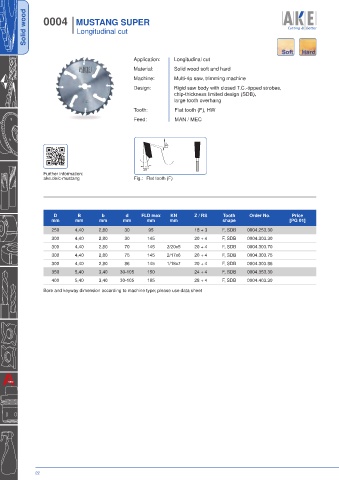

Solid wood 0004 I MUSTANG SUPER

I Longitudinal cut

Application: Longitudinal cut
Material: Solid wood soft and hard
Machine: Multi-rip saw, trimming machine
Design: Rigid saw body with closed T.C.-tipped strobes,
chip-thickness limited design (SDB),
large tooth overhang
Tooth: Flat tooth (F), HW
Feed: MAN / MEC

15°

20°
Further information:
ake.de/c-mustang Fig.: Flat tooth (F)

D B b d FLD max KN Z / RS Tooth Order No. Price
mm mm mm mm mm mm shape [PG 01]
250 4,40 2,80 30 95 18 + 3 F, SDB 0004.253.30
300 4,40 2,80 30 145 20 + 4 F, SDB 0004.303.30
300 4,40 2,80 70 145 2/20x5 20 + 4 F, SDB 0004.303.70
300 4,40 2,80 75 145 2/17x6 20 + 4 F, SDB 0004.303.75
300 4,40 2,80 86 145 1/18x7 20 + 4 F, SDB 0004.303.86
350 5,40 3,40 30-105 150 24 + 4 F, SDB 0004.353.30
400 5,40 3,40 30-105 185 28 + 4 F, SDB 0004.403.30
Bore and keyway dimension according to machine type; please use data sheet
