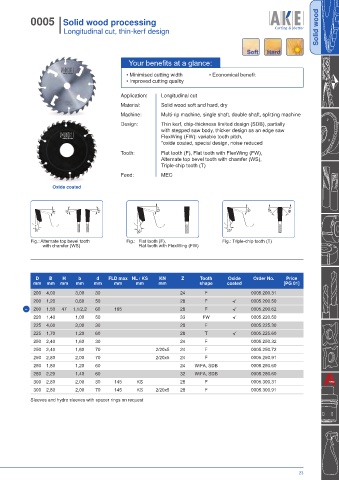

Page 27 - Catalogue_2025+

Solid wood
0005 I Solid wood processing
I Longitudinal cut, thin-kerf design

Application: Longitudinal cut Your benefits at a glance:
Material: Solid wood soft and hard
• Minimised cutting width • Economical benefit
Machine: Multi-rip saw, trimming machine • Improved cutting quality
Design: Rigid saw body with closed T.C.-tipped strobes,
chip-thickness limited design (SDB), Application: Longitudinal cut
large tooth overhang
Material: Solid wood soft and hard, dry
Tooth: Flat tooth (F), HW
Machine: Multi-rip machine, single shaft, double shaft, splitting machine
Feed: MAN / MEC
Design: Thin kerf, chip-thickness limited design (SDB), partially
with stepped saw body, thicker design as an edge saw
FlexWing (FW): variable tooth pitch,
*oxide coated, special design, noise reduced

Tooth: Flat tooth (F), Flat tooth with FlexWing (FW),
Alternate top bevel tooth with chamfer (WS),
Triple-chip tooth (T)
Feed: MEC
Oxide coated

15° 10° 10° 12° 15° 45° 45°

20° 20° 20°
Fig.: Alternate top bevel tooth Fig.: Flat tooth (F), Fig.: Triple-chip tooth (T)
with chamfer (WS) Flat tooth with FlexWing (FW)

D B H b d FLD max NL / KS KN Z Tooth Oxide Order No. Price
mm mm mm mm mm mm mm mm shape coated [PG 01]

200 4,00 3,00 30 24 F 0005.200.31
200 1,20 0,80 50 28 F 0005.200.50
– 200 1,50 47 1,1/2,2 60 105 28 F 0005.200.62
220 1,40 1,00 50 33 FW 0005.220.50
225 4,00 3,00 30 28 F 0005.225.30
225 1,70 1,20 60 28 T 0005.225.60
250 2,40 1,60 30 24 F 0005.250.32
250 2,40 1,60 70 2/20x5 24 F 0005.250.72
250 2,80 2,00 70 2/20x5 24 F 0005.250.91
250 1,80 1,20 60 24 W/FA, SDB 0005.250.60
280 2,20 1,40 60 32 W/FA, SDB 0005.280.60
300 2,80 2,00 30 145 KS 28 F 0005.300.31
300 2,80 2,00 70 145 KS 2/20x5 28 F 0005.300.91
Sleeves and hydro sleeves with spacer rings on request

23
