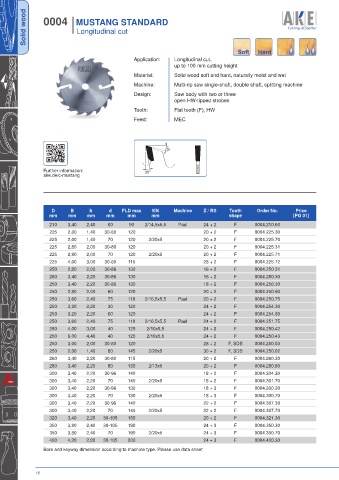

Page 22 - Catalogue_2025+

Solid wood 0004 I MUSTANG STANDARD

I Longitudinal cut

Application: Longitudinal cut,
up to 100 mm cutting height
Material: Solid wood soft and hard, naturally moist and wet
Machine: Multi-rip saw single-shaft, double shaft, splitting machine
Design: Saw body with two or three
open HW-tipped strobes
Tooth: Flat tooth (F), HW
Feed: MEC

12°

Further information: 20°
ake.de/c-mustang

D B b d FLD max KN Machine Z / RS Tooth Order No. Price
mm mm mm mm mm mm shape [PG 01]
210 3,40 2,40 60 90 2/14,5x5,5 Paul 24 + 2 F 0004.210.60
225 2,00 1,40 30-80 120 20 + 2 F 0004.225.30
225 2,00 1,40 70 120 2/20x5 20 + 2 F 0004.225.70
225 2,80 2,00 30-80 120 20 + 2 F 0004.225.31
225 2,80 2,00 70 120 2/20x5 20 + 2 F 0004.225.71
225 4,00 3,00 30-80 115 28 + 2 F 0004.225.72
250 2,80 2,00 30-86 130 16 + 2 F 0004.250.31
250 3,40 2,20 30-86 130 16 + 2 F 0004.250.30
250 3,40 2,20 30-86 130 18 + 2 F 0004.256.30
250 2,80 2,00 60 120 20 + 2 F 0004.250.60
250 3,60 2,40 75 110 2/16,5x5,5 Paul 20 + 2 F 0004.250.75
250 3,20 2,20 30 120 24 + 2 F 0004.254.30
250 3,20 2,20 60 120 24 + 2 F 0004.254.60
250 3,60 2,40 75 110 2/16,5x5,5 Paul 24 + 2 F 0004.251.75
250 4,00 3,00 40 125 2/10x5,5 24 + 2 F 0004.250.42
250 6,00 4,40 40 125 2/10x5,5 24 + 2 F 0004.250.43
250 3,00 2,00 30-80 120 28 + 2 F, SDB 0004.250.03
250 2,00 1,40 80 145 2/20x5 30 + 2 F, SDB 0004.250.02
260 3,40 2,20 30-80 115 20 + 2 F 0004.260.30
280 3,40 2,20 80 130 2/13x5 20 + 2 F 0004.280.80
300 3,40 2,20 30-96 140 18 + 2 F 0004.304.30
300 3,40 2,20 70 140 2/20x5 18 + 2 F 0004.301.70
300 3,40 2,20 30-96 130 18 + 3 F 0004.300.30
300 3,40 2,20 70 130 2/20x5 18 + 3 F 0004.300.70
300 3,40 2,20 30-96 140 22 + 2 F 0004.307.30
300 3,40 2,20 70 140 2/20x5 22 + 2 F 0004.307.70
320 3,40 2,20 30-105 150 20 + 2 F 0004.321.30
350 3,80 2,40 30-105 190 24 + 3 F 0004.350.30
350 3,80 2,40 70 190 2/20x5 24 + 3 F 0004.350.70
400 4,20 2,80 30-105 200 24 + 3 F 0004.400.30
Bore and keyway dimension according to machine type. Please use data sheet
