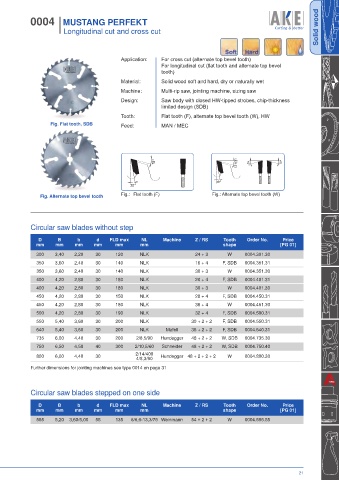

Page 25 - Catalogue_2025+

Solid wood
0004 I MUSTANG PERFEKT
I Longitudinal cut and cross cut

Application: For cross cut (alternate top bevel tooth)
For longitudinal cut (flat tooth and alternate top bevel
tooth)
Material: Solid wood soft and hard, dry or naturally wet
Machine: Multi-rip saw, jointing machine, sizing saw
Design: Saw body with closed HW-tipped strobes, chip-thickness
limited design (SDB)
Tooth: Flat tooth (F), alternate top bevel tooth (W), HW
Fig. Flat tooth, SDB Feed: MAN / MEC

15° 12°/15° 10° 10°

20°
20°
Fig. Alternate top bevel tooth Fig.: Flat tooth (F) Fig.: Alternate top bevel tooth (W)

Circular saw blades without step

D B b d FLD max NL Machine Z / RS Tooth Order No. Price
mm mm mm mm mm mm shape [PG 01]
300 3,40 2,20 30 120 NLK 24 + 3 W 0004.301.30
350 3,60 2,40 30 140 NLK 16 + 4 F, SDB 0004.351.31
350 3,60 2,40 30 140 NLK 30 + 3 W 0004.351.30
400 4,20 2,80 30 180 NLK 20 + 4 F, SDB 0004.401.31
400 4,20 2,80 30 180 NLK 30 + 3 W 0004.401.30
450 4,20 2,80 30 150 NLK 28 + 4 F, SDB 0004.450.31
450 4,20 2,80 30 180 NLK 36 + 4 W 0004.451.30
500 4,20 2,80 30 190 NLK 32 + 4 F, SDB 0004.500.31
550 5,40 3,60 30 200 NLK 30 + 2 + 2 F, SDB 0004.550.31
640 5,40 3,60 30 200 NLK Mafell 36 + 2 + 2 F, SDB 0004.640.31
735 6,00 4,40 30 200 2/8,5/90 Hundegger 48 + 2 + 2 W, SDB 0004.735.30
750 6,50 4,50 40 300 2/10,5/60 Schneider 48 + 2 + 2 W, SDB 0004.750.40
800 6,00 4,40 30 2/14/400 Hundegger 48 + 2 + 2 + 2 W 0004.800.30
4/8,3/90
Further dimensions for jointing machines see type 0014 on page 31

Circular saw blades stepped on one side

D B b d FLD max NL Machine Z / RS Tooth Order No. Price
mm mm mm mm mm mm shape [PG 01]
555 5,20 3,60/6,00 55 135 6/6,6-13,3/75 Weinmann 54 + 2 + 2 W 0004.555.55

21
