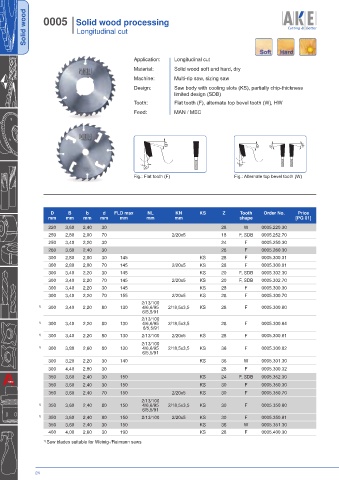

Solid wood 0005 I Solid wood processing

I Longitudinal cut

Application: Longitudinal cut
Material: Solid wood soft and hard, dry
Machine: Multi-rip saw, sizing saw
Design: Saw body with cooling slots (KS), partially chip-thickness
limited design (SDB)
Tooth: Flat tooth (F), alternate top bevel tooth (W), HW
Feed: MAN / MEC

15° 15° 10° 10°

20° 20°
Fig.: Flat tooth (F) Fig.: Alternate top bevel tooth (W)

D B b d FLD max NL KN KS Z Tooth Order No. Price
mm mm mm mm mm mm mm shape [PG 01]
220 3,60 2,40 30 28 W 0005.220.30
250 2,80 2,00 70 2/20x5 18 F, SDB 0005.252.70
250 3,40 2,20 30 24 F 0005.250.30
260 3,60 2,40 30 28 F 0005.260.30
300 2,80 2,00 30 145 KS 28 F 0005.300.31
300 2,80 2,00 70 145 2/20x5 KS 28 F 0005.300.91
300 3,40 2,20 30 145 KS 20 F, SDB 0005.302.30
300 3,40 2,20 70 145 2/20x5 KS 20 F, SDB 0005.302.70
300 3,40 2,20 30 145 KS 28 F 0005.300.30
300 3,40 2,20 70 155 2/20x5 KS 28 F 0005.300.70
2/13/100
1) 300 3,40 2,20 80 130 4/6,6/95 2/18,5x3,5 KS 28 F 0005.300.80
6/5,5/91
2/13/100
1) 300 3,40 2,20 80 130 4/6,6/95 2/18,5x3,5 28 F 0005.300.84
6/5,5/91
1) 300 3,40 2,20 80 130 2/13/100 2/20x5 KS 28 F 0005.300.81
2/13/100
1) 300 3,80 2,60 80 130 4/6,6/95 2/18,5x3,5 KS 36 F 0005.300.82
6/5,5/91
300 3,20 2,20 30 140 KS 36 W 0005.301.30
300 4,40 2,80 30 28 F 0005.300.32
350 3,60 2,40 30 150 KS 24 F, SDB 0005.352.30
350 3,60 2,40 30 150 KS 30 F 0005.350.30
350 3,60 2,40 70 150 2/20x5 KS 30 F 0005.350.70
2/13/100
1) 350 3,60 2,40 80 150 4/6,6/95 2/18,5x3,5 KS 30 F 0005.350.80
6/5,5/91
1) 350 3,60 2,40 80 150 2/13/100 2/20x5 KS 30 F 0005.350.81
350 3,60 2,40 30 150 KS 36 W 0005.351.30
400 4,00 2,60 30 190 KS 28 F 0005.400.30
1) Saw blades suitable for Weinig-/Raimann saws
