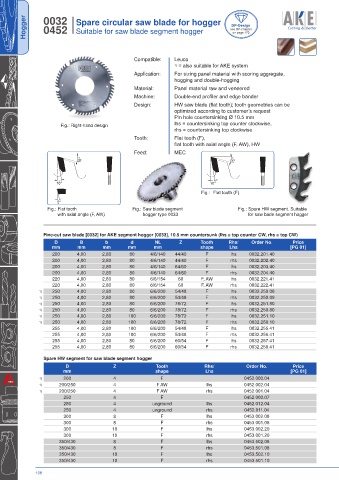

Page 112 - Catalogue_2025+

Hogger 0032 I Spare circular saw blade for hogger see DP-chapter
DP-Design
0452 I Suitable for saw blade segment hogger
on page 170

Compatible: Leuco
1) = also suitable for AKE system
Application: For sizing panel material with scoring aggregate,
hogging and double-hogging
Material: Panel material raw and veneered
Machine: Double-end profiler and edge bander
Design: HW saw blade (flat tooth); tooth geometries can be
optimized according to customer’s request
Pin hole countersinking Ø 10.5 mm
Fig.: Right-hand design lhs = countersinking top counter clockwise,
rhs = countersinking top clockwise
Tooth: Flat tooth (F),
flat tooth with axial angle (F, AW), HW
Feed: MEC
15° 15°

10° 10°
Fig.: Flat tooth (F)
5°
Fig.: Flat tooth Fig.: Saw blade segment Fig.: Spare HW segment. Suitable
with axial angle (F, AW) hogger type 0033 for saw bade segment hogger

Fine-cut saw blade [0032] for AKE segment hogger [0033], 10.5 mm countersunk (lhs = top counter CW, rhs = top CW)
D B b d NL Z Tooth Rhs/ Order No. Price
mm mm mm mm mm shape Lhs [PG 01]
200 4,00 2,80 80 4/6/140 44/40 F lhs 0032.201.40
200 4,00 2,80 80 4/6/140 44/40 F rhs 0032.202.40
200 4,00 2,80 80 4/6/140 64/60 F lhs 0032.203.40
200 4,00 2,80 80 4/6/140 64/60 F rhs 0032.204.40
220 4,00 2,80 80 6/6/154 60 F, AW lhs 0032.221.41
220 4,00 2,80 80 6/6/154 60 F, AW rhs 0032.222.41
1) 250 4,00 2,80 80 6/6/200 54/48 F lhs 0032.250.08
1) 250 4,00 2,80 80 6/6/200 54/48 F rhs 0032.250.09
1) 250 4,00 2,80 80 6/6/200 78/72 F lhs 0032.251.80
1) 250 4,00 2,80 80 6/6/200 78/72 F rhs 0032.250.80
1) 250 4,00 2,80 100 6/6/200 78/72 F lhs 0032.251.10
1) 250 4,00 2,80 100 6/6/200 78/72 F rhs 0032.250.10
255 4,00 2,80 100 6/6/200 54/48 F lhs 0032.255.41
255 4,00 2,80 100 6/6/200 54/48 F rhs 0032.256.41
255 4,00 2,80 80 6/6/200 60/54 F lhs 0032.257.41
255 4,00 2,80 80 6/6/200 60/54 F rhs 0032.258.41

Spare HW segment for saw blade segment hogger
D Z Tooth Rhs/ Order No. Price
mm shape Lhs [PG 01]
1) 200 4 F 0452.000.04
1) 200/250 4 F AW lhs 0452.002.04
1) 200/250 4 F AW rhs 0452.001.04
250 4 F 0452.000.07
250 4 unground lhs 0452.012.04
250 4 unground rhs 0452.011.04
300 8 F lhs 0453.002.08
300 8 F rhs 0453.001.08
300 10 F lhs 0453.002.20
300 10 F rhs 0453.001.20
350/430 8 F lhs 0453.502.08
350/430 8 F rhs 0453.501.08
350/430 10 F lhs 0453.502.10
350/430 10 F rhs 0453.501.10
