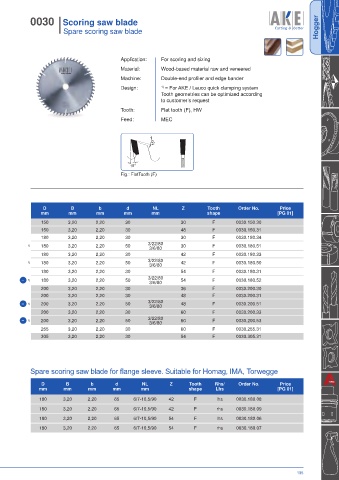

Page 109 - Catalogue_2025+

0030 I Scoring saw blade
I Spare scoring saw blade Hogger

Application: For scoring and sizing
Material: Wood-based material raw and veneered
Machine: Double-end profiler and edge bander
Design: 1) = For AKE / Leuco quick clamping system
Tooth geometries can be optimized according
to customer’s request
Tooth: Flat tooth (F), HW
Feed: MEC

15°

10°
Fig.: FlatTooth (F)

D B b d NL Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]
150 3,20 2,20 30 30 F 0030.150.30
150 3,20 2,20 30 48 F 0030.150.31
180 3,20 2,20 30 30 F 0030.180.34

1) 180 3,20 2,20 50 3/22/80 30 F 0030.180.51
3/6/80
180 3,20 2,20 30 42 F 0030.180.33
1) 180 3,20 2,20 50 3/22/80 42 F 0030.180.50
3/6/80
180 3,20 2,20 30 54 F 0030.180.31
– 1) 180 3,20 2,20 50 3/22/80 54 F 0030.180.52

3/6/80
200 3,20 2,20 30 36 F 0030.200.30
200 3,20 2,20 30 48 F 0030.200.31
– 1) 200 3,20 2,20 50 3/22/80 48 F 0030.200.51
3/6/80
200 3,20 2,20 30 60 F 0030.200.33
– 1) 200 3,20 2,20 50 3/22/80 60 F 0030.200.53
3/6/80
255 3,20 2,20 30 60 F 0030.255.31
305 3,20 2,20 30 54 F 0030.305.31

Spare scoring saw blade for flange sleeve. Suitable for Homag, IMA, Torwegge

D B b d NL Z Tooth Rhs/ Order No. Price
mm mm mm mm mm shape Lhs [PG 01]
180 3,20 2,20 65 6/7-10,5/90 42 F lhs 0030.180.08
180 3,20 2,20 65 6/7-10,5/90 42 F rhs 0030.180.09
180 3,20 2,20 65 6/7-10,5/90 54 F lhs 0030.180.06
180 3,20 2,20 65 6/7-10,5/90 54 F rhs 0030.180.07

105
