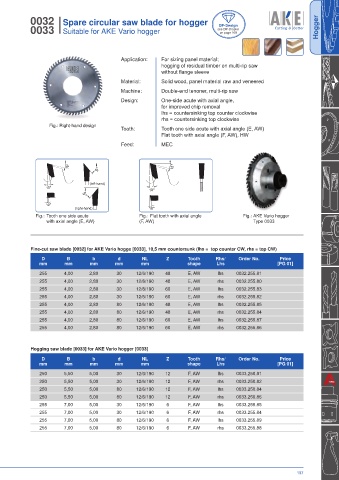

0032 I Spare circular saw blade for hogger DP-Design
0033 I Suitable for AKE Vario hogger see DP-chapter Hogger
on page 169

Application: For sizing panel material;
hogging of residual timber on multi-rip saw
without flange sleeve
Material: Solid wood, panel material raw and veneered
Machine: Double-end tenoner, multi-rip saw
Design: One-side acute with axial angle,
for improved chip removal
lhs = countersinking top counter clockwise
rhs = countersinking top clockwise
Fig.: Right-hand design
Tooth: Tooth one side acute with axial angle (E, AW)
Flat tooth with axial angle (F, AW), HW
Feed: MEC

15° 15°
5°

(links)
(left-hand)
10°
10°
5°
10°
(rechts)
(right-hand) 10°
Fig.: Tooth one side acute Fig.: Flat tooth with axial angle Fig.: AKE Vario hogger

with axial angle (E, AW) (F, AW) Type 0033

Fine-cut saw blade [0032] for AKE Vario hogge [0033], 10,5 mm countersunk (lhs = top counter CW, rhs = top CW)
D B b d NL Z Tooth Rhs/ Order No. Price
mm mm mm mm mm shape Lhs [PG 01]
255 4,00 2,80 30 12/6/190 48 E, AW lhs 0032.255.81
255 4,00 2,80 30 12/6/190 48 E, AW rhs 0032.255.80
255 4,00 2,80 30 12/6/190 60 E, AW lhs 0032.255.83
255 4,00 2,80 30 12/6/190 60 E, AW rhs 0032.255.82
255 4,00 2,80 80 12/6/190 48 E, AW lhs 0032.255.85
255 4,00 2,80 80 12/6/190 48 E, AW rhs 0032.255.84
255 4,00 2,80 80 12/6/190 60 E, AW lhs 0032.255.87
255 4,00 2,80 80 12/6/190 60 E, AW rhs 0032.255.86

Hogging saw blade [0033] for AKE Vario hogger [0033]
D B b d NL Z Tooth Rhs/ Order No. Price
mm mm mm mm mm shape Lhs [PG 01]
250 5,50 5,00 30 12/6/190 12 F, AW lhs 0033.250.81
250 5,50 5,00 30 12/6/190 12 F, AW rhs 0033.250.82
250 5,50 5,00 80 12/6/190 12 F, AW lhs 0033.250.84
250 5,50 5,00 80 12/6/190 12 F, AW rhs 0033.250.86
255 7,00 5,00 30 12/6/190 6 F, AW lhs 0033.255.85
255 7,00 5,00 30 12/6/190 6 F, AW rhs 0033.255.84
255 7,00 5,00 80 12/6/190 6 F, AW lhs 0033.255.89
255 7,00 5,00 80 12/6/190 6 F, AW rhs 0033.255.88

107
