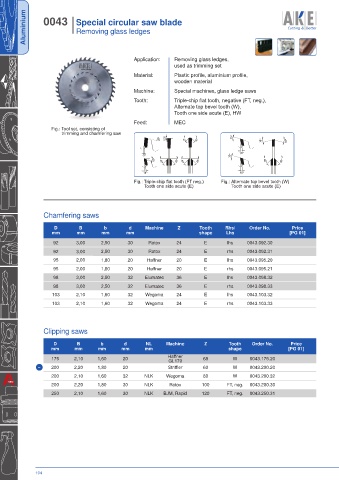

Aluminium 0043 I Special circular saw blade

I Removing glass ledges

Application: Removing glass ledges,
used as trimming set
Material: Plastic profile, aluminium profile,
wooden material
Machine: Special machines, glass ledge saws
Tooth: Triple-chip flat tooth, negative (FT, neg.),
Alternate top bevel tooth (W),
Tooth one side acute (E), HW
Feed: MEC
Fig.: Tool set, consisting of
trimming and chamfering saw
20° 0,25 45° 45° 15° 15° 15°

10°
-3° 15°
15° 45° 45° 45° 45° 45° 45°

10° 10°
Fig.: Triple-chip flat tooth (FT neg.) Fig.: Alternate top bevel tooth (W)
Tooth one side acute (E) Tooth one side acute (E)

Chamfering saws

D B b d Machine Z Tooth Rhs/ Order No. Price
mm mm mm mm shape Lhs [PG 01]
92 3,00 2,50 30 Rotox 24 E lhs 0043.092.30
92 3,00 2,50 30 Rotox 24 E rhs 0043.092.31
95 2,00 1,80 20 Haffner 20 E lhs 0043.095.20
95 2,00 1,80 20 Haffner 20 E rhs 0043.095.21
98 3,00 2,50 32 Elumatec 36 E lhs 0043.098.32
98 3,00 2,50 32 Elumatec 36 E rhs 0043.098.33
103 2,10 1,60 32 Wegoma 24 E lhs 0043.103.32
103 2,10 1,60 32 Wegoma 24 E rhs 0043.103.33

Clipping saws

D B b d NL Machine Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]
175 2,10 1,60 20 Haffner 68 W 0043.175.20
GL179
– 200 2,20 1,80 20 Striffler 60 W 0043.200.20
200 2,10 1,60 32 NLK Wegoma 80 W 0043.200.32
200 2,20 1,80 30 NLK Rotox 100 FT, neg. 0043.200.30
250 2,10 1,60 30 NLK BJM, Rapid 120 FT, neg. 0043.250.31
