Aluminium

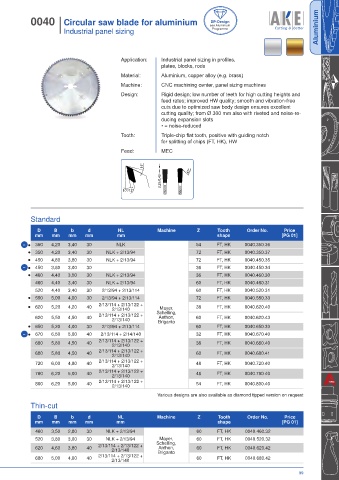

0040 I Circular saw blade for aluminium DP-Design
see Aluminium
I Industrial panel sizing
Programme

Application: Industrial panel sizing in profiles,
plates, blocks, rods
Material: Aluminium, copper alloy (e.g. brass)
Machine: CNC machining center, panel sizing machines
Design: Rigid design; low number of teeth for high cutting heights and
feed rates; improved HW quality; smooth and vibration-free
cuts due to optimized saw body design ensures excellent
cutting quality; from Ø 300 mm also with riveted and noise-re-
ducing expansion slots
• = noise-reduced
Tooth: Triple-chip flat tooth, positive with guiding notch
for splitting of chips (FT, HK), HW
Feed: MEC

15°
45°
0,25/0,40

10°/12°

Standard

D B b d NL Machine Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]
– • 350 4,20 3,40 30 NLK 54 FT, HK 0040.350.36
• 350 4,20 3,40 30 NLK + 2/13/94 72 FT, HK 0040.350.37
• 450 4,80 3,80 30 NLK + 2/13/94 72 FT, HK 0040.450.35
– • 450 3,80 3,00 30 36 FT, HK 0040.450.34
• 460 4,40 3,50 30 NLK + 2/13/94 36 FT, HK 0040.460.30
460 4,40 3,40 30 NLK + 2/13/94 60 FT, HK 0040.460.31
520 4,40 3,40 30 2/13/94 + 2/13/114 60 FT, HK 0040.520.31
• 550 5,00 4,00 30 2/13/94 + 2/13/114 72 FT, HK 0040.550.33
• 620 5,20 4,20 40 2/13/114 + 2/13/122 + Mayer, 36 FT, HK 0040.620.40
2/13/140
Anthon,
620 5,50 4,50 40 2/13/114 + 2/13/122 + Schelling, 60 FT, HK 0040.620.43
2/13/140
• 650 5,20 4,00 30 2/13/94 + 2/13/114 Briganto 60 FT, HK 0040.650.33
– • 670 6,50 5,00 40 2/13/114 + 2/14/140 32 FT, HK 0040.670.40
680 5,80 4,50 40 2/13/114 + 2/13/122 + 36 FT, HK 0040.680.40
2/13/140
680 5,80 4,50 40 2/13/114 + 2/13/122 + 60 FT, HK 0040.680.41
2/13/140
720 6,00 4,80 40 2/13/114 + 2/13/122 + 48 FT, HK 0040.720.40
2/13/140
780 6,20 5,00 40 2/13/114 + 2/13/122 + 48 FT, HK 0040.780.40
2/13/140
800 6,20 5,00 40 2/13/114 + 2/13/122 + 54 FT, HK 0040.800.40
2/13/140
Various designs are also available as diamond tipped version on request
Thin-cut

D B b d NL Machine Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]
460 3,50 2,80 30 NLK + 2/13/94 60 FT, HK 0040.460.32
Mayer,
520 3,80 3,00 30 NLK + 2/13/94 Schelling, 60 FT, HK 0040.520.32
620 4,60 3,80 40 2/13/114 + 2/13/122 + Briganto 60 FT, HK 0040.620.42
Anthon,
2/13/140
680 5,00 4,00 40 2/13/114 + 2/13/122 + 60 FT, HK 0040.680.42
2/13/140
99
