Real-Time-Analyser

Basic systems and variants

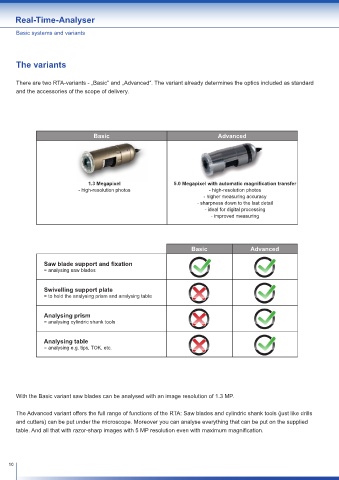

The variants

There are two RTA-variants - „Basic“ and „Advanced“. The variant already determines the optics included as standard
and the accessories of the scope of delivery.

Basic Advanced

1.3 Megapixel 5.0 Megapixel with automatic magnification transfer
- high-resolution photos - high-resolution photos
- higher measuring accuracy
- sharpness down to the last detail
- ideal for digital processing
- improved measuring

Basic Advanced

Saw blade support and fixation
= analysing saw blades

Swivelling support plate
= to hold the analysing prism and analysing table

Analysing prism
= analysing cylindric shank tools

Analysing table
= analysing e.g. tips, TOK, etc.

With the Basic variant saw blades can be analysed with an image resolution of 1.3 MP.

The Advanced variant offers the full range of functions of the RTA: Saw blades and cylindric shank tools (just like drills
and cutters) can be put under the microscope. Moreover you can analyse everything that can be put on the supplied
table. And all that with razor-sharp images with 5 MP resolution even with maximum magnification.
