Real-Time-Analyser

The RTA system

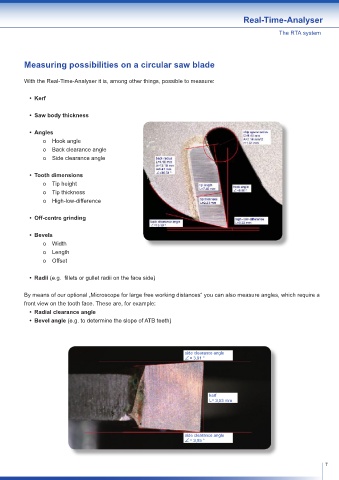

Measuring possibilities on a circular saw blade

With the Real-Time-Analyser it is, among other things, possible to measure:

• Kerf

• Saw body thickness

• Angles
o Hook angle
o Back clearance angle
o Side clearance angle

• Tooth dimensions
o Tip height
o Tip thickness
o High-low-difference

• Off-centre grinding

• Bevels
o Width
o Length
o Offset

• Radii (e.g. fillets or gullet radii on the face side)

By means of our optional „Microscope for large free working distances“ you can also measure angles, which require a
front view on the tooth face. These are, for example:
• Radial clearance angle
• Bevel angle (e.g. to determine the slope of ATB teeth)

side clearance angle
= 3,91 °

kerf
L= 3,53 mm

side clearance angle
= 3,95 °
