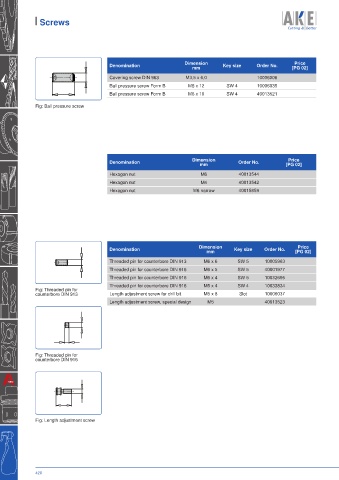

Page 424 - Catalogue_2025+

I Screws

Price
Denomination Dimension Key size Order No. [PG 02]
mm
Covering screw DIN 963 M3,5 x 6,0 10006006
Ball pressure screw Form B M8 x 12 SW 4 10006035
Ball pressure screw Form B M6 x 10 SW 4 40013521
Fig: Ball pressure screw

Price
Denomination Dimension Order No. [PG 02]
mm
Hexagon nut M6 40013544
Hexagon nut M4 40013542
Hexagon nut M6 narrow 40015859

Price
Denomination Dimension Key size Order No. [PG 02]
mm
Threaded pin for counterbore DIN 913 M6 x 6 SW 5 10005963
Threaded pin for counterbore DIN 916 M6 x 5 SW 5 40001977
Threaded pin for counterbore DIN 916 M6 x 4 SW 5 10032695
Threaded pin for counterbore DIN 916 M5 x 4 SW 4 10033834
Fig: Threaded pin for
counterbore DIN 913 Length adjustment screw for drill bit M5 x 8 Slot 10006037
Length adjustment screw, special design M5 40013523

Fig: Threaded pin for
counterbore DIN 916

Fig: Length adjustment screw

420
