L1
d D

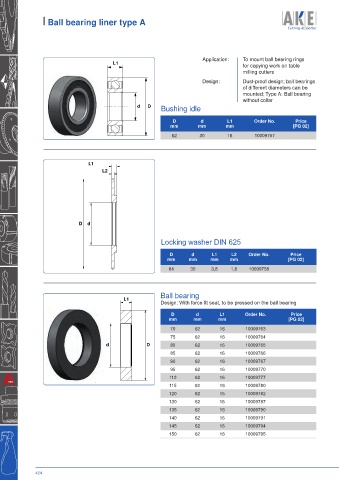

I Ball bearing liner type A

Application: To mount ball bearing rings
L1 for copying work on table
milling cutters
Design: Dust-proof design; ball bearings
of different diameters can be
mounted; Type A: Ball bearing
without collar
d D Bushing idle

D d L1 Order No. Price
mm mm mm [PG 02]
62 30 16 10009757

L1 L1
L2

D d

D d

Locking washer DIN 625

D d L1 L2 Order No. Price
mm mm mm mm [PG 02]
64 30 3,8 1,8 10009758

Ball bearing
L1
Design: With force fit seat, to be pressed on the ball bearing
D d L1 Order No. Price
mm mm mm [PG 02]
70 62 16 10009763
75 62 16 10009764
d D 80 62 16 10009765
85 62 16 10009766
90 62 16 10009767
95 62 16 10009770
110 62 16 10009777
115 62 16 10009780
120 62 16 10009782
130 62 16 10009787
135 62 16 10009790
140 62 16 10009791
145 62 16 10009794
150 62 16 10009795

424
