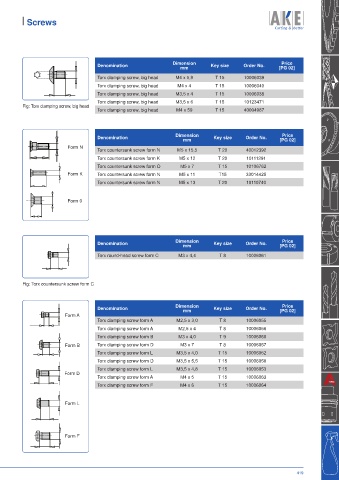

Page 423 - Catalogue_2025+

I Screws

Price
Denomination Dimension Key size Order No. [PG 02]
mm
Torx clamping screw, big head M4 x 5,9 T 15 10006039
Torx clamping screw, big head M4 x 4 T 15 10006040
Torx clamping screw, big head M3,5 x 4 T 15 10006038
Torx clamping screw, big head M3,5 x 6 T 15 10123471
Fig: Torx clamping screw, big head
Torx clamping screw, big head M4 x 59 T 15 40004987

Price
Denomination Dimension Key size Order No. [PG 02]
mm
Form N
Torx countersunk screw form N M5 x 15,5 T 20 40012392
Torx countersunk screw form K M5 x 12 T 20 10111291
Torx countersunk screw form O M5 x 7 T 15 10106762
Form K Torx countersunk screw form N M5 x 11 T15 33014425
Torx countersunk screw form N M5 x 13 T 20 10110740

Form 0

Price
Denomination Dimension Key size Order No. [PG 02]
mm
Torx round-head screw form C M3 x 4,4 T 8 10006061

Fig: Torx countersunk screw form C

Price
Denomination Dimension Key size Order No. [PG 02]
mm
Form A
Torx clamping screw form A M2,5 x 3,0 T 8 10006055
Torx clamping screw form A M2,5 x 4 T 8 10006056
Torx clamping screw form B M3 x 4,0 T 9 10006060
Form B Torx clamping screw form D M3 x 7 T 8 10006057
Torx clamping screw form L M3,5 x 4,0 T 15 10006052
Torx clamping screw form D M3,5 x 5,5 T 15 10006058
Torx clamping screw form L M3,5 x 4,8 T 15 10006053
Form D
Torx clamping screw form A M4 x 5 T 15 10006063
Torx clamping screw form F M4 x 6 T 15 10006064

Form L

Form F

419
