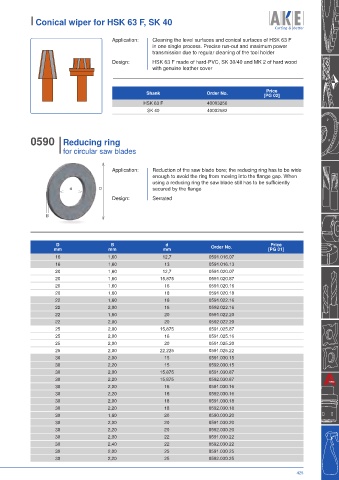

Page 429 - Catalogue_2025+

I Conical wiper for HSK 63 F, SK 40

Application: Cleaning the level surfaces and conical surfaces of HSK 63 F
in one single process. Precise run-out and maximum power
transmission due to regular cleaning of the tool holder
Design: HSK 63 F made of hard-PVC, SK 30/40 and MK 2 of hard wood
with genuine leather cover

Price
Shank Order No. [PG 02]
HSK 63 F 40003256
SK 40 40002582

0590 I Reducing ring
I for circular saw blades

Application: Reduction of the saw blade bore; the reducing ring has to be wide
enough to avoid the ring from moving into the flange gap. When
using a reducing ring the saw blade still has to be sufficiently
d D secured by the flange
Design: Serrated

B

D B d Price
mm mm mm Order No. [PG 01]
16 1,60 12,7 0591.016.07
16 1,60 13 0591.016.13
20 1,60 12,7 0591.020.07
20 1,60 15,875 0591.020.87
20 1,60 16 0591.020.16
20 1,60 18 0591.020.18
22 1,60 16 0591.022.16
22 2,00 16 0592.022.16
22 1,60 20 0591.022.20
22 2,00 20 0592.022.20
25 2,00 15,875 0591.025.87
25 2,00 16 0591.025.16
25 2,00 20 0591.025.20
25 2,00 22,225 0591.025.22
30 2,00 15 0591.030.15
30 2,20 15 0592.030.15
30 2,00 15,875 0591.030.87
30 2,20 15,875 0592.030.87
30 2,00 16 0591.030.16
30 2,20 16 0592.030.16
30 2,00 18 0591.030.18
30 2,20 18 0592.030.18
30 1,60 20 0590.030.20
30 2,00 20 0591.030.20
30 2,20 20 0592.030.20
30 2,00 22 0591.030.22
30 2,40 22 0592.030.22
30 2,00 25 0591.030.25
30 2,20 25 0592.030.25
