P. 307

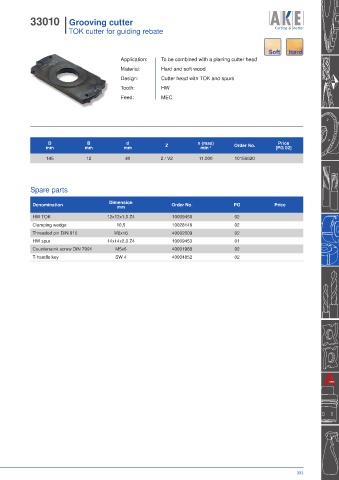

33010 I Grooving cutter
I TOK cutter for guiding rebate
Application: To be combined with a planing cutter head
Material: Hard and soft wood
Design: Cutter head with TOK and spurs
Tooth: HW
Feed: MEC
D B d n (max) Price
mm mm mm Z min -1 Order No. [PG 02]
145 12 40 2 / V2 11.000 10156620
Spare parts
Denomination Dimension Order No. PG Price
mm
HW TOK 12x12x1,5 Z4 10009450 02
Clamping wedge 10,5 10028146 02
Threaded pin DIN 915 M8x16 40002009 02
HW spur 14x14x2,0 Z4 10009453 01
Countersunk screw DIN 7991 M5x6 40001968 02
T-handle key SW 4 40004852 02
303
