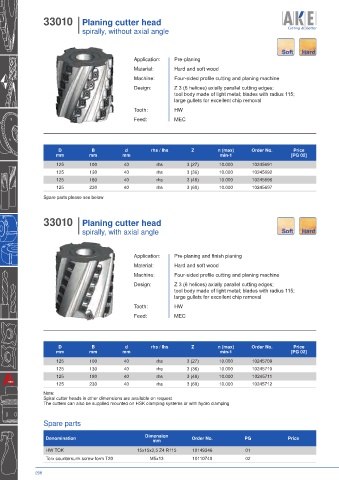

33010 I Planing cutter head
I spirally, without axial angle

Application: Pre-planing
Material: Hard and soft wood
Machine: Four-sided profile cutting and planing machine
Design: Z 3 (6 helices) axially parallel cutting edges;
tool body made of light metal; blades with radius 115;
large gullets for excellent chip removal
Tooth: HW
Feed: MEC

D B d rhs / lhs Z n (max) Order No. Price
mm mm mm min-1 [PG 02]
125 100 40 rhs 3 (27) 10.000 10245691
125 130 40 rhs 3 (36) 10.000 10245692
125 180 40 rhs 3 (48) 10.000 10245696
125 230 40 rhs 3 (60) 10.000 10245697
Spare parts please see below

33010 I Planing cutter head
I spirally, with axial angle

Application: Pre-planing and finish planing
Material: Hard and soft wood

Machine: Four-sided profile cutting and planing machine
Design: Z 3 (6 helices) axially parallel cutting edges;
tool body made of light metal; blades with radius 115;
large gullets for excellent chip removal
Tooth: HW
Feed: MEC

D B d rhs / lhs Z n (max) Order No. Price
mm mm mm min-1 [PG 02]
125 100 40 rhs 3 (27) 10.000 10245709
125 130 40 rhs 3 (36) 10.000 10245710
125 180 40 rhs 3 (48) 10.000 10245711
125 230 40 rhs 3 (60) 10.000 10245712
Note:
Spiral cutter heads in other dimensions are available on request
The cutters can also be supplied mounted on HSK clamping systems or with hydro clamping

Spare parts

Denomination Dimension Order No. PG Price
mm
HW TOK 15x15x2,5 Z4 R115 10149346 01
Torx countersunk screw form T20 M5x13 10110740 02
