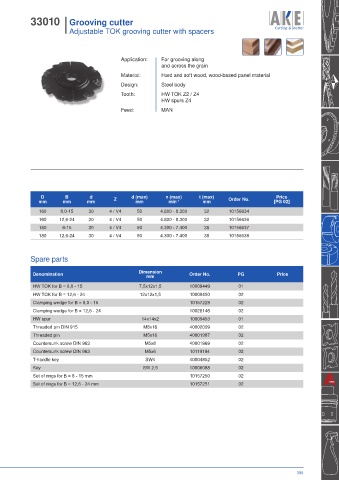

33010 I Grooving cutter
I Adjustable TOK grooving cutter with spacers

Application: For grooving along
and across the grain
Material: Hard and soft wood, wood-based panel material
Design: Steel body
Tooth: HW TOK Z2 / Z4
HW spurs Z4
Feed: MAN

D B d d (max) n (max) t (max) Price
mm mm mm Z mm min -1 mm Order No. [PG 02]
160 8,0-15 30 4 / V4 50 4.800 - 8.300 32 10156634
160 12,6-24 30 4 / V4 50 4.800 - 8.300 32 10156636
180 8-15 30 4 / V4 50 4.300 - 7.400 38 10156637
180 12,6-24 30 4 / V4 50 4.300 - 7.400 38 10156638

Spare parts

Denomination Dimension Order No. PG Price
mm
HW TOK for B = 8,0 - 15 7,5x12x1,5 10009449 01
HW TOK for B = 12,6 - 24 12x12x1,5 10009450 02
Clamping wedge for B = 8,0 - 15 10157229 02
Clamping wedge for B = 12,6 - 24 10028146 02
HW spur 14x14x2 10009453 01
Threaded pin DIN 915 M8x16 40002009 02
Threaded pin M5x16 40001987 02
Countersunk screw DIN 963 M5x8 40001969 02
Countersunk screw DIN 963 M5x6 10119194 02
T-handle key SW4 40004852 02
Key SW 2,5 10006088 02
Set of rings for B = 8 - 15 mm 10157250 02
Set of rings for B = 12,6 - 24 mm 10157251 02

305
