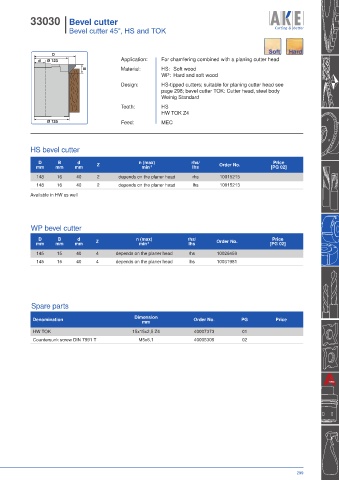

33030 I Bevel cutter
I Bevel cutter 45°, HS and TOK

D
d Ø 123 Application: For chamfering combined with a planing cutter head
B Material: HS: Soft wood
WP: Hard and soft wood
Design: HS-tipped cutters; suitable for planing cutter head see
page 298; bevel cutter TOK: Cutter head, steel body
Weinig Standard

Tooth: HS
HW TOK Z4
Ø 125 Feed: MEC

HS bevel cutter

D B d n (max) rhs/ Price
mm mm mm Z min -1 lhs Order No. [PG 02]
148 16 40 2 depends on the planer head rhs 10015215
148 16 40 2 depends on the planer head lhs 10015213
Available in HW as well

WP bevel cutter

D B d n (max) rhs/ Price
mm mm mm Z min -1 lhs Order No. [PG 02]
145 15 40 4 depends on the planer head rhs 10026459
145 15 40 4 depends on the planer head lhs 10031981

Spare parts

Denomination Dimension Order No. PG Price
mm
HW TOK 15x15x2,5 Z4 40007373 01
Countersunk screw DIN 7991 T M5x6,1 40005305 02
