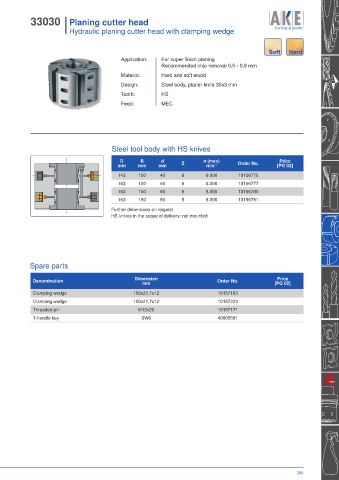

33030 I Planing cutter head
I Hydraulic planing cutter head with clamping wedge
Application: For super finish planing
Recommended chip removal 0,5 - 0,8 mm
Material: Hard and soft wood
Design: Steel body, planer knife 30x3 mm
Tooth: HS
Feed: MEC
Steel tool body with HS knives
D B d n (max) Price
mm mm mm Z min -1 Order No. [PG 02]
143 150 40 6 9.000 10156775
163 100 50 6 8.000 10156777
163 150 50 6 8.000 10156780
163 150 50 8 8.000 10156781
Further dimensions on request
HS knives in the scope of delivery; not mounted
Spare parts
Price
Denomination Dimension Order No. [PG 02]
mm
Clamping wedge 100x21,7x12 10157183
Clamping wedge 150x21,7x12 10157223
Threaded pin M12x20 10157171
T-handle key SW6 40005681
