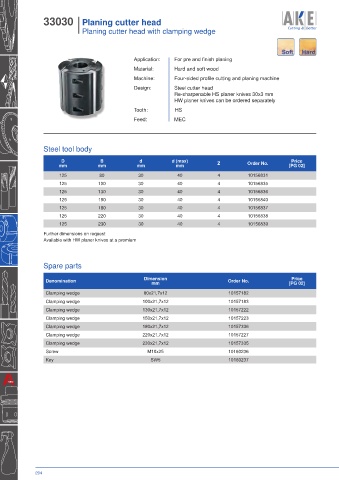

33030 I Planing cutter head
I Planing cutter head with clamping wedge

Application: For pre and finish planing
Material: Hard and soft wood
Machine: Four-sided profile cutting and planing machine
Design: Steel cutter head
Re-sharpenable HS planer knives 30x3 mm
HW planer knives can be ordered separately
Tooth: HS
Feed: MEC

Steel tool body

D B d d (max) Price
mm mm mm mm Z Order No. [PG 02]
125 80 30 40 4 10156831
125 100 30 40 4 10156835
125 130 30 40 4 10156836
125 150 30 40 4 10156840
125 180 30 40 4 10156837
125 220 30 40 4 10156838
125 230 30 40 4 10156839
Further dimensions on request
Available with HW planer knives at a premium

Spare parts

Price
Denomination Dimension Order No. [PG 02]
mm
Clamping wedge 80x21,7x12 10157182
Clamping wedge 100x21,7x12 10157183
Clamping wedge 130x21,7x12 10157222
Clamping wedge 150x21,7x12 10157223
Clamping wedge 180x21,7x12 10157336
Clamping wedge 220x21,7x12 10157227
Clamping wedge 230x21,7x12 10157335
Screw M10x25 10160236
Key SW5 10160237
