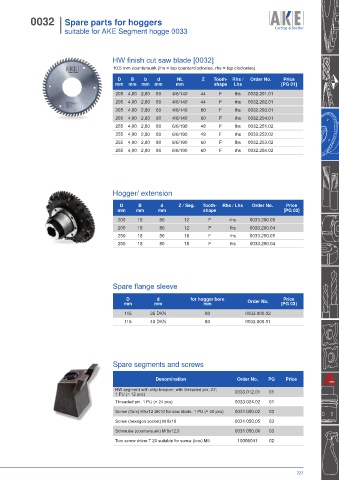

0032 I Spare parts for hoggers
I suitable for AKE Segment hogge 0033

HW finish cut saw blade [0032]
10,5 mm countersunk (lhs = top counterclockwise, rhs = top clockwise)

D B b d NL Z Tooth- Rhs / Order No. Price
mm mm mm mm mm shape Lhs [PG 01]
205 4,00 2,80 80 4/6/140 44 F lhs 0032.201.01
205 4,00 2,80 80 4/6/140 44 F rhs 0032.202.01
205 4,00 2,80 80 4/6/140 60 F lhs 0032.203.01
205 4,00 2,80 80 4/6/140 60 F rhs 0032.204.01
255 4,00 2,80 80 6/6/190 48 F lhs 0032.251.02
255 4,00 2,80 80 6/6/190 48 F rhs 0032.252.02
255 4,00 2,80 80 6/6/190 60 F lhs 0032.253.02
255 4,00 2,80 80 6/6/190 60 F rhs 0032.254.02

Hogger/ extension

D B d Z / Seg. Tooth- Rhs / Lhs Order No. Price
mm mm mm shape [PG 03]

200 18 80 12 F rhs 0033.200.05
200 18 80 12 F lhs 0033.200.04
250 18 80 18 F rhs 0033.250.05
250 18 80 18 F lhs 0033.250.04

Spare flange sleeve

D d for hogger bore Price
mm mm mm Order No. [PG 03]
115 35 DKN 80 0033.000.02
115 40 DKN 80 0033.000.01

Spare segments and screws

Denomination Order No. PG Price

HW segment with chip breaker; with threaded pin; Z2; 0033.012.01 01
1 PU (= 12 pcs)
Threaded pin. 1 PU (= 24 pcs) 0033.024.02 01

Screw (Torx) M5x12 SK10 for saw blade. 1 PU (= 50 pcs) 0031.050.02 03
Screw (hexagon socket) M 8x16 0031.050.05 03
Schraube (countersunk) M 8x12,5 0031.050.06 03
Torx screw driver T 20 suitable for screw (torx) M5 10006041 02

227
