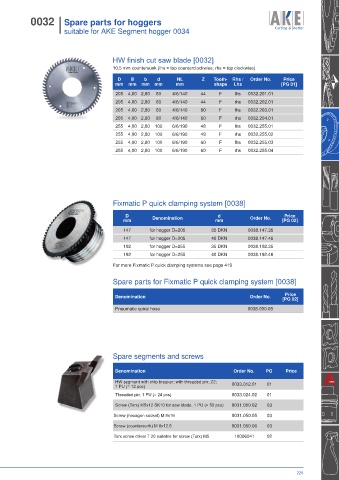

0032 I Spare parts for hoggers
I suitable for AKE Segment hogger 0034

HW finish cut saw blade [0032]
10,5 mm countersunk (lhs = top counterclockwise, rhs = top clockwise)

D B b d NL Z Tooth- Rhs / Order No. Price
mm mm mm mm mm shape Lhs [PG 01]
205 4,00 2,80 80 4/6/140 44 F lhs 0032.201.01
205 4,00 2,80 80 4/6/140 44 F rhs 0032.202.01
205 4,00 2,80 80 4/6/140 60 F lhs 0032.203.01
205 4,00 2,80 80 4/6/140 60 F rhs 0032.204.01
255 4,00 2,80 100 6/6/190 48 F lhs 0032.255.01
255 4,00 2,80 100 6/6/190 48 F rhs 0032.255.02
255 4,00 2,80 100 6/6/190 60 F lhs 0032.255.03
255 4,00 2,80 100 6/6/190 60 F rhs 0032.255.04

Fixmatic P quick clamping system [0038]

D d Price
mm Denomination mm Order No. [PG 02]
147 for hogger D=205 35 DKN 0038.147.35
147 for hogger D=205 40 DKN 0038.147.46
192 for hogger D=255 35 DKN 0038.192.35
192 for hogger D=255 40 DKN 0038.192.46

For more Fixmatic P quick clamping systems see page 419

Spare parts for Fixmatic P quick clamping system [0038]

Price
Denomination Order No. [PG 02]
Pneumatic spiral hose 0038.000.05

Spare segments and screws

Denomination Order No. PG Price
HW segment with chip breaker; with threaded pin; Z2; 0033.012.01 01
1 PU (= 12 pcs)
Threaded pin. 1 PU (= 24 pcs) 0033.024.02 01
Screw (Torx) M5x12 SK10 for saw blade. 1 PU (= 50 pcs) 0031.050.02 03
Screw (hexagon socket) M 8x16 0031.050.05 03

Screw (countersunk) M 8x12,5 0031.050.06 03
Torx screw driver T 20 suitable for screw (Torx) M5 10006041 02

225
