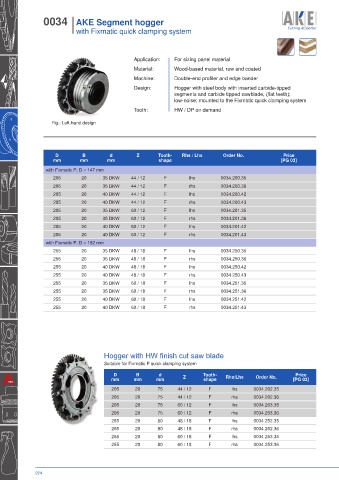

Page 228 - Catalogue_2025+

0034 I AKE Segment hogger
I with Fixmatic quick clamping system

Application: For sizing panel material
Material: Wood-based material, raw and coated
Machine: Double-end profiler and edge bander
Design: Hogger with steel body with inserted carbide-tipped
segments and carbide tipped sawblade, (flat teeth);
low-noise; mounted to the Fixmatic quick clamping system
Tooth: HW / DP on demand

Fig.: Left-hand design

D B d Z Tooth- Rhs / Lhs Order No. Price
mm mm mm shape [PG 03]

with Fixmatic P: D = 147 mm
205 20 35 DKW 44 / 12 F lhs 0034.200.35
205 20 35 DKW 44 / 12 F rhs 0034.200.36
205 20 40 DKW 44 / 12 F lhs 0034.200.42
205 20 40 DKW 44 / 12 F rhs 0034.200.43
205 20 35 DKW 60 / 12 F lhs 0034.201.35
205 20 35 DKW 60 / 12 F rhs 0034.201.36
205 20 40 DKW 60 / 12 F lhs 0034.201.42
205 20 40 DKW 60 / 12 F rhs 0034.201.43
with Fixmatic P: D = 192 mm
255 20 35 DKW 48 / 18 F lhs 0034.250.35
255 20 35 DKW 48 / 18 F rhs 0034.250.36
255 20 40 DKW 48 / 18 F lhs 0034.250.42
255 20 40 DKW 48 / 18 F rhs 0034.250.43
255 20 35 DKW 60 / 18 F lhs 0034.251.35
255 20 35 DKW 60 / 18 F rhs 0034.251.36
255 20 40 DKW 60 / 18 F lhs 0034.251.42
255 20 40 DKW 60 / 18 F rhs 0034.251.43

Hogger with HW finish cut saw blade
Suitable for Fixmatic P quick clamping system

D B d Tooth- Price
mm mm mm Z shape Rhs/Lhs Order No. [PG 03]
205 20 75 44 / 12 F lhs 0034.202.35
205 20 75 44 / 12 F rhs 0034.202.36
205 20 75 60 / 12 F lhs 0034.203.35
205 20 75 60 / 12 F rhs 0034.203.36
255 20 80 48 / 18 F lhs 0034.252.35
255 20 80 48 / 18 F rhs 0034.252.36
255 20 80 60 / 18 F lhs 0034.253.35
255 20 80 60 / 18 F rhs 0034.253.36

224
