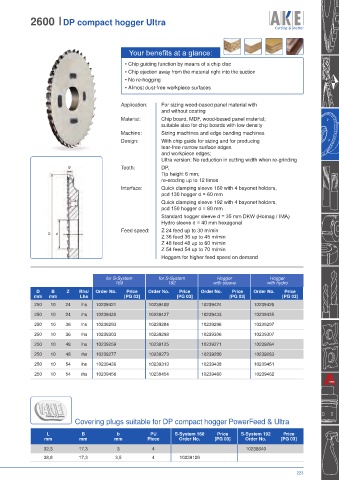

2600 I DP compact hogger Ultra

Your benefits at a glance:

• Chip guiding function by means of a chip disc
• Chip ejection away from the material right into the suction
• No re-hogging
• Almost dust-free workpiece surfaces

Application: For sizing wood-based panel material with
and without coating
Material: Chip board, MDF, wood-based panel material;
suitable also for chip boards with low density
Machine: Sizing machines and edge banding machines
Design: With chip guide for sizing and for producing
tear-free narrow surface edges
and workpiece edges;
Ultra version: No reduction in cutting width when re-grinding
B Tooth: DP,
Tip height 6 mm;
re-eroding up to 12 times
Interface: Quick clamping sleeve 160 with 4 bayonet holders,
pcd 130 hogger d = 60 mm
Quick clamping sleeve 192 with 4 bayonet holders,
pcd 150 hogger d = 80 mm
Standard hogger sleeve d = 35 mm DKW (Homag / IMA)
Hydro sleeve d = 40 mm hexagonal
Feed speed: Z 24 feed up to 30 m/min
D d
Z 36 feed 36 up to 45 m/min
Z 48 feed 48 up to 60 m/min
Z 54 feed 54 up to 70 m/min
Hoggers for higher feed speed on demand

for S-System for S-System Hogger Hogger
160 192 with sleeve with hydro
D B Z Rhs/ Order No. Price Order No. Price Order No. Price Order No. Price
mm mm Lhs [PG 03] [PG 03] [PG 03] [PG 03]
250 10 24 lhs 10239421 10239408 10239424 10239426
250 10 24 rhs 10239430 10239427 10239433 10239435
250 10 36 lhs 10239293 10239284 10239296 10239297

250 10 36 rhs 10239303 10239298 10239306 10239307
250 10 48 lhs 10239259 10239125 10239271 10239264
250 10 48 rhs 10239277 10239273 10239280 10239283
250 10 54 lhs 10239436 10239313 10239438 10239451
250 10 54 rhs 10239456 10239454 10239460 10239462

Covering plugs suitable for DP compact hogger PowerFeed & Ultra

L B b PU S-System 160 Price S-System 192 Price
mm mm mm Piece Order No. [PG 03] Order No. [PG 03]
32,3 17,3 3 4 10238640
38,8 17,3 3,5 4 10239129
