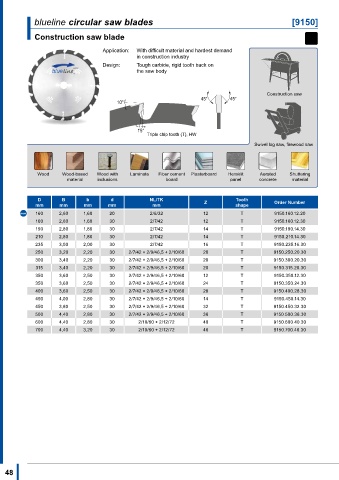

Page 48 - blueline Catalogue 2022+

blueline circular saw blades [9150]

Construction saw blade

Application: With difficult material and hardest demand
in construction industry
Design: Tough carbide, rigid tooth back on
the saw body

Construction saw
45° 45°
10°

15°
Triple chip tooth (T), HW
Swivel log saw, firewood saw

Wood Wood-based Wood with Laminate Fiber cement Plasterboard Heraklit Aerated Shuttering
material inclusions board panel concrete material

D B b d NL/TK Tooth
mm mm mm mm mm Z shape Order Number
new 160 2,60 1,60 20 2/6/32 12 T 9150.160.12.20
160 2,60 1,60 30 2/7/42 12 T 9150.160.12.30
190 2,80 1,80 30 2/7/42 14 T 9150.190.14.30
210 2,80 1,80 30 2/7/42 14 T 9150.210.14.30
235 3,00 2,00 30 2/7/42 16 T 9150.235.16.30
250 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 20 T 9150.250.20.30
300 3,40 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 20 T 9150.300.20.30
315 3,40 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 20 T 9150.315.20.30
350 3,60 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 12 T 9150.350.12.30
350 3,60 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 24 T 9150.350.24.30
400 3,60 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 28 T 9150.400.28.30
450 4,00 2,80 30 2/7/42 + 2/9/46,5 + 2/10/60 14 T 9150.450.14.30
450 3,80 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 32 T 9150.450.32.30
500 4,40 2,80 30 2/7/42 + 2/9/46,5 + 2/10/60 36 T 9150.500.36.30
600 4,40 2,80 30 2/10/60 + 2/12/72 40 T 9150.600.40.30
700 4,40 3,20 30 2/10/60 + 2/12/72 46 T 9150.700.46.30

48
