P. 46

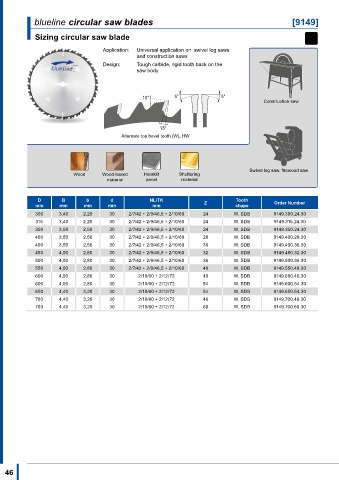

blueline circular saw blades                                                               [9149]

             Sizing circular saw blade

                                     Application:   Universal application on  swivel log saws
                                                 and construction saws
                                     Design:     Tough carbide, rigid tooth back on the
                                                 saw body


                             10°
                                                   10°        5°               5°             Construction saw
                                                                                    5°               5°


                                   15°
                                                         15°
                                            Alternate top bevel tooth (W), HW






                                                                                         Swivel log saw, firewood saw
                           Wood      Wood-based     Heraklit    Shuttering
                                       material     panel        material


              D            B                   b             d            NL/TK                                   Tooth
             mm       mm      mm       mm              mm                Z          shape        Order Number
             300      3,40    2,20     30     2/7/42 + 2/9/46,5 + 2/10/60  24      W, SDB        9149.300.24.30
              315     3,40    2,20     30     2/7/42 + 2/9/46,5 + 2/10/60  24      W, SDB        9149.315.24.30
             350      3,50    2,50     30     2/7/42 + 2/9/46,5 + 2/10/60  24      W, SDB        9149.350.24.30
             400      3,50    2,50     30     2/7/42 + 2/9/46,5 + 2/10/60  28      W, SDB        9149.400.28.30
             400      3,50    2,50     30     2/7/42 + 2/9/46,5 + 2/10/60  36      W, SDB        9149.400.36.30
             450      4,00    2,80     30     2/7/42 + 2/9/46,5 + 2/10/60  32      W, SDB        9149.450.32.30
             500      4,00    2,80     30     2/7/42 + 2/9/46,5 + 2/10/60  36      W, SDB        9149.500.36.30
             550      4,00    2,80     30     2/7/42 + 2/9/46,5 + 2/10/60  48      W, SDB        9149.550.48.30
             600      4,00    2,80     30         2/10/60 + 2/12/72     40         W, SDB        9149.600.40.30
             600      4,00    2,80     30         2/10/60 + 2/12/72     54         W, SDB        9149.600.54.30
             650      4,40    3,20     30         2/10/60 + 2/12/72     54         W, SDB        9149.650.54.30
             700      4,40    3,20     30         2/10/60 + 2/12/72     46         W, SDB        9149.700.46.30
             700      4,40    3,20     30         2/10/60 + 2/12/72     60         W, SDB        9149.700.60.30


































   46
