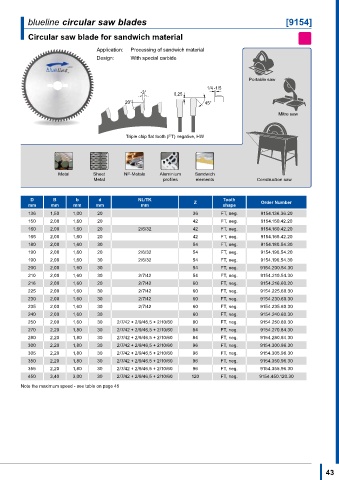

blueline circular saw blades [9154]

Circular saw blade for sandwich material

Application: Processing of sandwich material
Design: With special carbide

Portable saw
1/4 -1/5
-3° 0,25
20° 45°
Mitre saw

Triple chip flat tooth (FT) negative, HW

Metal Sheet NF-Metals Aluminium Sandwich
Metal profiles elements Construction saw

D B b d NL/TK Tooth
mm mm mm mm mm Z shape Order Number
136 1,50 1,00 20 36 FT, neg. 9154.136.36.20
150 2,00 1,60 20 42 FT, neg. 9154.150.42.20
160 2,00 1,60 20 2/6/32 42 FT, neg. 9154.160.42.20
165 2,00 1,60 20 42 FT, neg. 9154.165.42.20
180 2,00 1,60 30 54 FT, neg. 9154.180.54.30
190 2,00 1,60 20 2/6/32 54 FT, neg. 9154.190.54.20
190 2,00 1,60 30 2/6/32 54 FT, neg. 9154.190.54.30
200 2,00 1,60 30 54 FT, neg. 9154.200.54.30
210 2,00 1,60 30 2/7/42 54 FT, neg. 9154.210.54.30
216 2,00 1,60 20 2/7/42 60 FT, neg. 9154.216.60.20
225 2,00 1,60 30 2/7/42 60 FT, neg. 9154.225.60.30
230 2,00 1,60 30 2/7/42 60 FT, neg. 9154.230.60.30
235 2,00 1,60 30 2/7/42 60 FT, neg. 9154.235.60.30
240 2,00 1,60 30 60 FT, neg. 9154.240.60.30
250 2,00 1,60 30 2/7/42 + 2/9/46,5 + 2/10/60 80 FT, neg. 9154.250.80.30
270 2,20 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 84 FT, neg. 9154.270.84.30
280 2,20 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 84 FT, neg. 9154.280.84.30
300 2,20 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 96 FT, neg. 9154.300.96.30
305 2,20 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 96 FT, neg. 9154.305.96.30
350 2,20 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 96 FT, neg. 9154.350.96.30
355 2,20 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 96 FT, neg. 9154.355.96.30
450 3,40 3,00 30 2/7/42 + 2/9/46,5 + 2/10/60 120 FT, neg. 9154.450.120.30
Note the maximum speed - see table on page 45
