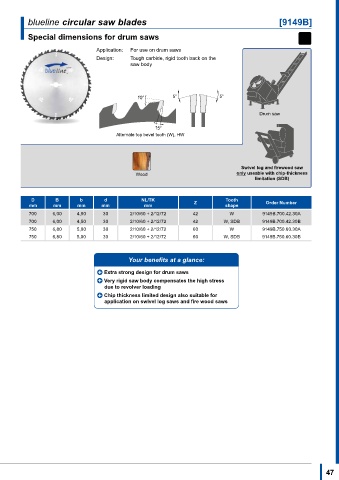

Page 47 - blueline Catalogue 2022+
P. 47
blueline circular saw blades [9149B]
Special dimensions for drum saws
Application: For use on drum saws
Design: Tough carbide, rigid tooth back on the
saw body
10°
10° 5° 5°
5° 5°
Drum saw
15°
15°
Alternate top bevel tooth (W), HW
Swivel log and firewood saw
Wood only useable with chip-thickness
limitation (SDB)
D B b d NL/TK Tooth
mm mm mm mm mm Z shape Order Number
700 6,00 4,50 30 2/10/60 + 2/12/72 42 W 9149B.700.42.30A
700 6,00 4,50 30 2/10/60 + 2/12/72 42 W, SDB 9149B.700.42.30B
750 6,80 5,00 30 2/10/60 + 2/12/72 60 W 9149B.750.60.30A
750 6,80 5,00 30 2/10/60 + 2/12/72 60 W, SDB 9149B.750.60.30B
Your benefits at a glance:
Extra strong design for drum saws
Very rigid saw body compensates the high stress
due to revolver loading
Chip thickness limited design also suitable for
application on swivel log saws and fire wood saws
47
