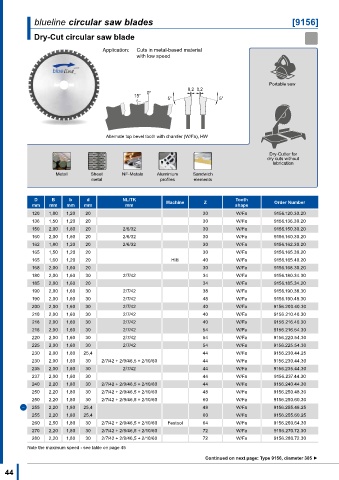

Page 44 - blueline Catalogue 2022+

blueline circular saw blades [9156]

Dry-Cut circular saw blade

Application: Cuts in metal-based material
with low speed

Portable saw
0,2 0,2
0°
15° 5° 5°

Alternate top bevel tooth with chamfer (W/Fa), HW

Dry-Cutter for
dry cuts without
lubrication

Metall Sheet NF-Metals Aluminium Sandwich
metal profiles elements

D B b d NL/TK Tooth
mm mm mm mm mm Machine Z shape Order Number
120 1,80 1,20 20 30 W/Fa 9156.120.30.20
136 1,50 1,20 20 30 W/Fa 9156.136.30.20
150 2,00 1,60 20 2/6/32 30 W/Fa 9156.150.30.20
160 2,00 1,60 20 2/6/32 30 W/Fa 9156.160.30.20
162 1,80 1,20 20 2/6/32 30 W/Fa 9156.162.30.20
165 1,50 1,20 20 30 W/Fa 9156.165.30.20
165 1,60 1,20 20 Hilti 40 W/Fa 9156.165.40.20
168 2,00 1,60 20 30 W/Fa 9156.168.30.20
180 2,00 1,60 30 2/7/42 34 W/Fa 9156.180.34.30
185 2,00 1,60 20 34 W/Fa 9156.185.34.20
190 2,00 1,60 30 2/7/42 38 W/Fa 9156.190.38.30
190 2,00 1,60 30 2/7/42 48 W/Fa 9156.190.48.30
200 2,00 1,60 30 2/7/42 40 W/Fa 9156.200.40.30
210 2,00 1,60 30 2/7/42 40 W/Fa 9156.210.40.30
216 2,00 1,60 30 2/7/42 40 W/Fa 9156.216.40.30
216 2,00 1,60 30 2/7/42 54 W/Fa 9156.216.54.30
220 2,00 1,60 30 2/7/42 54 W/Fa 9156.220.54.30
225 2,00 1,60 30 2/7/42 54 W/Fa 9156.225.54.30
230 2,00 1,60 25,4 44 W/Fa 9156.230.44.25
230 2,00 1,60 30 2/7/42 + 2/9/46,5 + 2/10/60 44 W/Fa 9156.230.44.30
235 2,00 1,60 30 2/7/42 44 W/Fa 9156.235.44.30
237 2,00 1,60 30 44 W/Fa 9156.237.44.30
240 2,20 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 44 W/Fa 9156.240.44.30
250 2,20 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 48 W/Fa 9156.250.48.30
250 2,20 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 60 W/Fa 9156.250.60.30
– 255 2,20 1,80 25,4 48 W/Fa 9156.255.48.25
255 2,20 1,80 25,4 60 W/Fa 9156.255.60.25
260 2,50 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 Festool 64 W/Fa 9156.260.64.30
270 2,20 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 72 W/Fa 9156.270.72.30
280 2,20 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 72 W/Fa 9156.280.72.30
Note the maximum speed - see table on page 45

Continued on next page: Type 9156, diameter 305 ►
