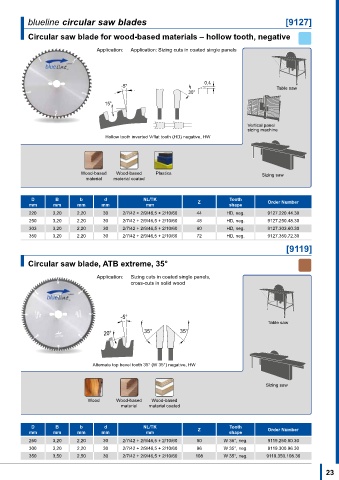

Page 23 - blueline Catalogue 2022+

blueline circular saw blades [9127]

Circular saw blade for wood-based materials – hollow tooth, negative

Application: Application: Sizing cuts in coated single panels

0,4
-5° Table saw
30°
15°

Vertical panel
sizing machine
Hollow tooth inverted V/flat tooth (HD) negative, HW

Wood-based Wood-based Plastics Sizing saw
material material coated

D B b d NL/TK Tooth
mm mm mm mm mm Z shape Order Number
220 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 44 HD, neg. 9127.220.44.30
250 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 48 HD, neg. 9127.250.48.30
303 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 60 HD, neg. 9127.303.60.30
350 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 72 HD, neg. 9127.350.72.30
[9119]

Circular saw blade, ATB extreme, 35°

Application: Sizing cuts in coated single panels,
cross-cuts in solid wood

-5°
Table saw
20° 35° 35°

Alternate top bevel tooth 35° (W 35°) negative, HW

Sizing saw

Wood Wood-based Wood-based
material material coated

D B b d NL/TK Tooth
mm mm mm mm mm Z shape Order Number
250 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 80 W 35°, neg. 9119.250.80.30
300 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 96 W 35°, neg. 9119.300.96.30
350 3,50 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 108 W 35°, neg. 9119.350.108.30

23
