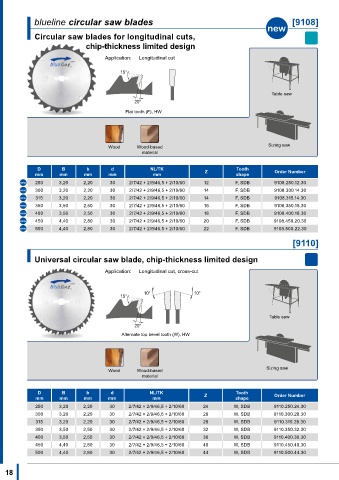

Page 18 - blueline Catalogue 2022+

blueline circular saw blades [9108]
new
Circular saw blades for longitudinal cuts,
chip-thickness limited design

Application: Longitudinal cut

10° 10° 15° 10° 10° 45°

Table saw
20°
Flat tooth (F), HW
12°/15° 15° 15°

Wood Wood-based Sizing saw
10°/12°/15°/20° material 15° 10°

D B b d NL/TK Z Tooth Order Number
mm mm mm mm mm shape
new 250 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 12 F, SDB 9108.250.12.30
new 300 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 14 F, SDB 9108.300.14.30
new 315 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 14 F, SDB 9108.315.14.30
new 350 3,50 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 16 F, SDB 9108.350.16.30
new 400 3,50 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 18 F, SDB 9108.400.18.30
new 450 4,40 2,80 30 2/7/42 + 2/9/46,5 + 2/10/60 20 F, SDB 9108.450.20.30
new 500 4,40 2,80 30 2/7/42 + 2/9/46,5 + 2/10/60 22 F, SDB 9108.500.22.30
[9110]

Universal circular saw blade, chip-thickness limited design

Application: Longitudinal cut, cross-cut

15° 15° 10° 10° 10° 10°

Table saw
20° 20°

Alternate top bevel tooth (W), HW

Wood Wood-based Sizing saw
material

D B b d NL/TK Tooth
mm mm mm mm mm Z shape Order Number
250 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 24 W, SDB 9110.250.24.30
300 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 28 W, SDB 9110.300.28.30
315 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 28 W, SDB 9110.315.28.30
350 3,50 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 32 W, SDB 9110.350.32.30
400 3,50 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 36 W, SDB 9110.400.36.30
450 4,40 2,80 30 2/7/42 + 2/9/46,5 + 2/10/60 40 W, SDB 9110.450.40.30
500 4,40 2,80 30 2/7/42 + 2/9/46,5 + 2/10/60 44 W, SDB 9110.500.44.30

18
