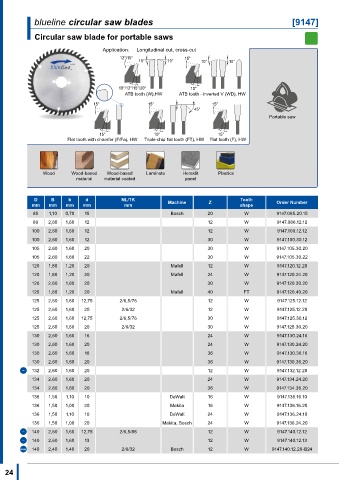

Page 24 - blueline Catalogue 2022+

blueline circular saw blades [9147]

Circular saw blade for portable saws

Application: Longitudinal cut, cross-cut
12°/15° 15° 15° 15° 12°/15° 15° 15° 15° 25° 35° 35° 0,2 mm 15° 15° 25° 35° 35° 0,2 mm
10° 10° 45° 10° 10° 10° 10° 45° 10° 10°

10°/12°/15°/20°
10°/12°/15°/20° 15° 10° 15° 10° 15° 10° -5° 15° 10° -5°
ATB tooth (W),HW ATB tooth - inverted V (WD), HW
12°/15° 15° 12°/15° 15° 15° 12°/15° 15° 15° 15° 15° 25° 35° 35° 15° 0,2 mm 15° 25° 35° 15° 35° 0,2 mm 25° 35° 35° 0,2 mm
15°
15°
10° 10° 10° 10° 45° 10° 10° 10° 45° 10° 45° 10° 10° 10°
10°
Portable saw
10°/12°/15°/20° 15° 10°/12°/15°/20° 15° 15° 10°/12°/15°/20°10° 10° 15° 15° -5° 10° 10° 15° -5° 10° -5°
10°
Flat tooth with chamfer (F/Fa), HW Triple-chip flat tooth (FT), HW Flat tooth (F), HW

Wood Wood-based Wood-based Laminate Heraklit Plastics
material material coated panel

D B b d NL/TK Tooth
mm mm mm mm mm Machine Z shape Order Number
85 1,10 0,70 15 Bosch 20 W 9147.085.20.15
86 2,60 1,60 12 12 W 9147.086.12.12
100 2,60 1,60 12 12 W 9147.100.12.12
100 2,60 1,60 12 30 W 9147.100.30.12
105 2,60 1,60 20 30 W 9147.105.30.20
105 2,60 1,60 22 30 W 9147.105.30.22
120 1,80 1,20 20 Mafell 12 W 9147.120.12.20
120 1,80 1,20 20 Mafell 24 W 9147.120.24.20
120 2,60 1,60 20 30 W 9147.120.30.20
120 1,80 1,20 20 Mafell 40 FT 9147.120.40.20
125 2,60 1,60 12,75 2/6,5/76 12 W 9147.125.12.12
125 2,60 1,60 20 2/6/32 12 W 9147.125.12.20
125 2,60 1,60 12,75 2/6,5/76 30 W 9147.125.30.12
125 2,60 1,60 20 2/6/32 30 W 9147.125.30.20
130 2,60 1,60 16 24 W 9147.130.24.16
130 2,60 1,60 20 24 W 9147.130.24.20
130 2,60 1,60 16 36 W 9147.130.36.16
130 2,60 1,60 20 36 W 9147.130.36.20
– 132 2,60 1,60 20 12 W 9147.132.12.20
134 2,60 1,60 20 24 W 9147.134.24.20
134 2,60 1,60 20 36 W 9147.134.36.20
136 1,50 1,10 10 DeWalt 16 W 9147.136.16.10
136 1,50 1,00 20 Makita 16 W 9147.136.16.20
136 1,50 1,10 10 DeWalt 24 W 9147.136.24.10
136 1,50 1,00 20 Makita, Bosch 24 W 9147.136.24.20
– 140 2,60 1,60 12,75 2/6,5/88 12 W 9147.140.12.12
– 140 2,60 1,60 13 12 W 9147.140.12.13
new 140 2,40 1,40 20 2/6/32 Bosch 12 W 9147.140.12.20-B24
